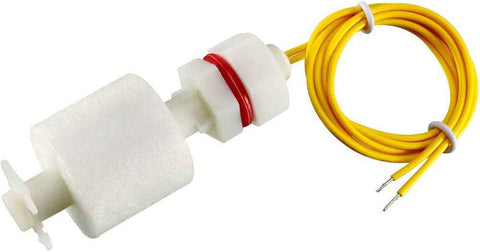

Water Level Float Switch ZP4510 – PP Vertical Type

The Water Level Float Switch ZP4510 is a mechanical liquid level sensor designed for reliable water and fluid detection in tanks and reservoirs. It operates as a dry contact reed switch, changing state when the float rises with liquid level. Rated for up to 220V AC/DC switching voltage and 0.5A switching current, it provides stable performance in low-power control circuits. The PP float and body construction ensures corrosion resistance and submersible operation. Ideal for pump control, alarms, and integration with Arduino, Raspberry Pi, and industrial controllers.

• Magnetic reed switch mechanism

• Normally closed contact when floating

• Dry contact output interface

• 220V AC/DC maximum switching voltage

• 0.5A maximum switching current

• 10W maximum contact rating

• PP float and body construction

• Fully submersible vertical design

• 300V AC/DC breakdown voltage

• Wide temperature range -10°C to +85°C

• 36 cm pre-attached cable

• Compatible with Arduino and Raspberry Pi


• Model: ZP4510

• Switch Type: Magnetic Reed Float Switch

• Contact Type: Normally Closed

• Max Contact Rating: 10W

• Max Switching Voltage: 220V AC/DC

• Max Switching Current: 0.5A

• Max Breakdown Voltage: 300V AC/DC

• Max Carry Current: 1A

• Max Contact Resistance: 100 mΩ

• Operating Temperature: -10°C to +85°C

• Float Material: Polypropylene PP

• Body Material: Polypropylene PP

• Thread Diameter: 9.5 mm

• Mounting Hole Size: 10 mm

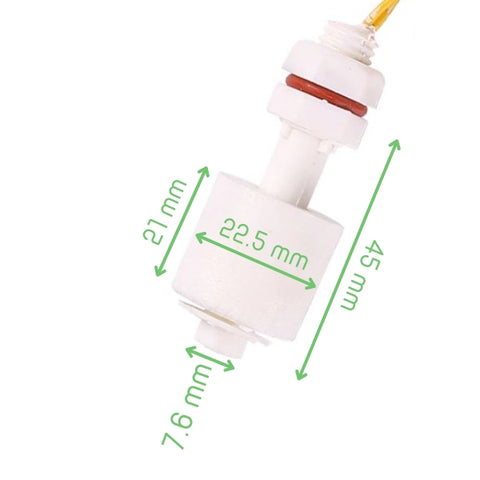

• Body Dimensions: 23.3 × 57.7 mm

• Cable Length: 360 mm

• Weight: 70 g
