V-Slot 2020 Aluminum Extrusion Profile – 500 mm Length

The V-Slot 2020 aluminum extrusion profile is a structural linear rail designed for modular framing and precise motion applications. It features a 20×20 mm profile with integrated V-grooves, allowing smooth and stable linear movement using compatible wheels. Manufactured from high-quality aluminum, it offers a lightweight yet rigid structure suitable for mechanical assemblies. Its consistent geometry ensures reliable alignment and easy integration with standard connectors and accessories. Ideal for CNC machines, 3D printers, and custom automation systems.

• 2020 V-Slot profile with integrated linear guide

• Aluminum construction for strength and low weight

• Smooth V-groove surface for precise motion systems

• High structural rigidity for frame stability

• Compatible with V-wheel systems and accessories

• Modular design for easy assembly and expansion

• Standard 20×20 mm cross-section

• Corrosion-resistant anodized finish

• Suitable for CNC and 3D printer frames

• Easy cutting and customization

• Compatible with T-nuts and standard fasteners

• Consistent dimensional accuracy

• Lightweight profile for efficient designs

• Reusable and reconfigurable structure component

• Material: Aluminum

• Profile Type: V-Slot 2020

• Length: 500 mm

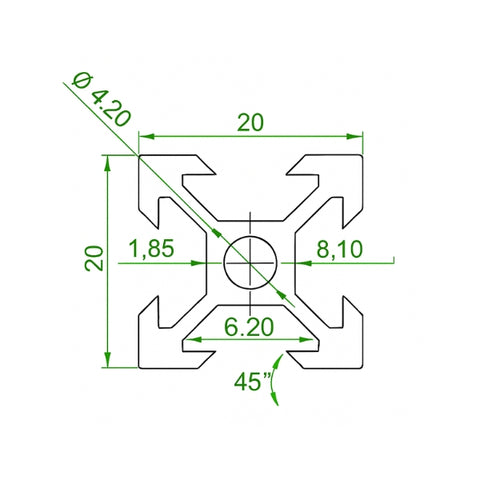

• Cross Section: 20 × 20 mm

• Color: Silver

• Surface Finish: Anodized

• Slot Type: V-Groove Linear Rail

• Weight: ~0.5 kg/m

• Straightness Tolerance: ±0.1 mm per 500 mm

• Hardness: Medium structural grade aluminum
• Compatibility: V-wheel systems, T-nuts, corner brackets

• Application Type: Structural framing and linear motion

• Corrosion Resistance: Yes

• Cutting Tolerance: Standard extrusion tolerance
