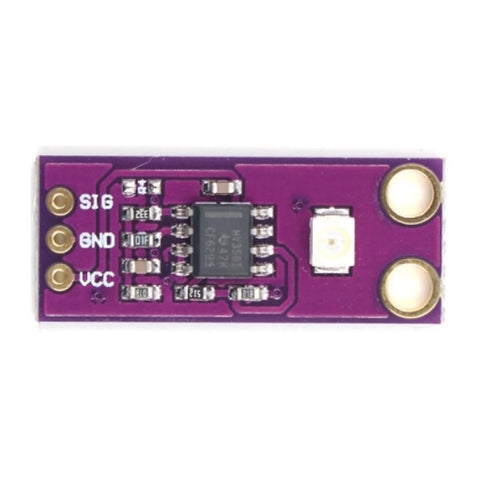

UV Light Sensor Module – GUVA-S12SD, Analog Output

The UV Light Sensor Module is designed for measuring ultraviolet radiation intensity in sunlight. It is based on the GUVA-S12SD UV photodiode and detects wavelengths from 240 nm to 370 nm, covering UVB and most UVA radiation. The module includes an onboard operational amplifier that converts the photodiode’s nano-ampere signal into a stable analog voltage output. Operating from 3.3 V to 5.5 V, it can be directly connected to microcontroller ADC inputs for reliable UV index monitoring. Ideal for environmental sensing, wearable devices, and outdoor monitoring applications.

• GUVA-S12SD UV photodiode sensor

• Analog voltage output proportional to UV intensity

• UV index measurement range from 0 to 10 UVI

• Wavelength detection from 240 nm to 370 nm

• Wide detection angle of 130°

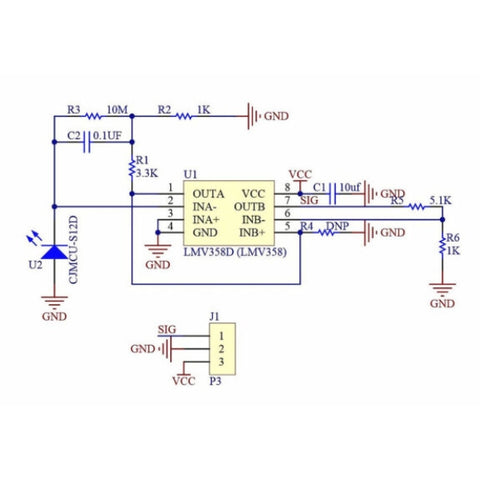

• Onboard operational amplifier for signal conditioning

• Compatible with 3.3 V and 5 V microcontrollers

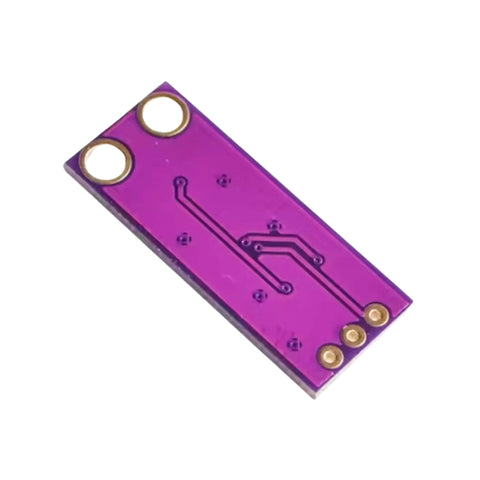

• Compact PCB design for easy integration

• Sensor Type: GUVA-S12SD UV photodiode

• Output Type: Analog voltage

• Operating Voltage: 3.3V – 5.5V DC

• UV Index Range: 0 – 10 UVI

• Wavelength Range: 240 nm – 370 nm

• Detection Angle: 130°
• Pin Count: 3 pins

• Operating Temperature: -30°C to +85°C

• Storage Temperature: -40°C to +90°C

• PCB Size: 11 mm × 27 mm
