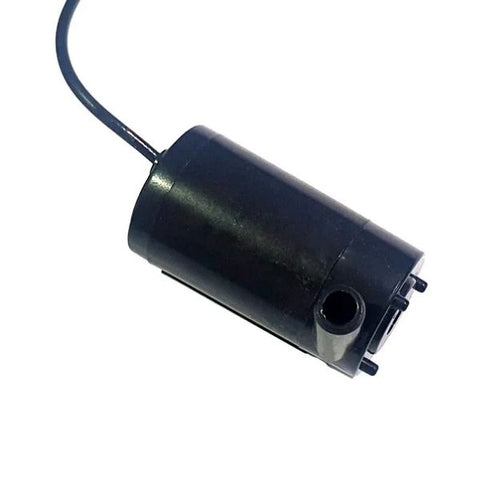

USB Mini Submersible Water Pump – 5V DC Brushless Micro Pump

The USB Mini Submersible Water Pump is a compact DC pump designed for low-voltage fluid transfer and circulation applications. It operates within a 2.5–6V DC range and uses a brushless magnetic driving mechanism for stable and efficient performance. The pump delivers a flow rate of up to 120 L/h with a maximum lift height of 1.1 m, making it suitable for small-scale systems. Built with engineering plastic, it ensures durability and resistance to continuous operation. Ideal for DIY projects, cooling systems, aquariums, and educational experiments.

• Brushless DC motor with magnetic drive mechanism

• Operating voltage range from 2.5V to 6V DC

• Flow rate up to 120 liters per hour

• Maximum lift height up to 1.1 meters

• Low power consumption between 0.4W and 1.5W

• Continuous operation lifespan up to 500 hours

• Compact cylindrical design for tight spaces

• Submersible operation for water-based systems

• Engineering plastic housing for corrosion resistance

• Low noise and stable fluid flow performance

• Pre-attached power wires for easy integration

• Suitable for USB-powered and battery-powered systems

• Lightweight construction for portable applications

• Compatible with small tubing systems

• Simple two-wire DC connection interface

• Operating Voltage: 2.5–6V DC

• Working Current: 130–220mA

• Power Consumption: 0.4–1.5W

• Maximum Flow Rate: 80–120 L/h

• Maximum Lift Height: 0.4–1.1 m

• Motor Type: Brushless DC Magnetic Drive

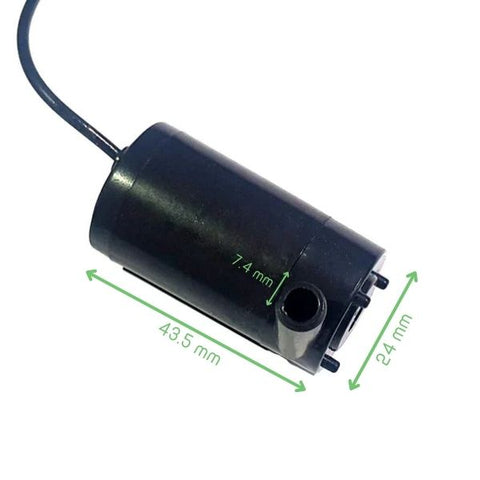

• Outlet Outer Diameter: 7.5 mm

• Outlet Inner Diameter: 4.7 mm

• Pump Diameter: 24 mm

• Pump Length: 45 mm

• Pump Height: 33 mm

• Wire Length: 150–200 mm

• Housing Material: Engineering Plastic

• Operating Mode: Submersible

• Continuous Working Life: 500 hours

• Mini Submersible Water Pump Datasheet
• Mini Micro Submersible Motor Pump 3D Model

• USB Powered Micro Submersible Pump | Mini Water Pump Review Video
