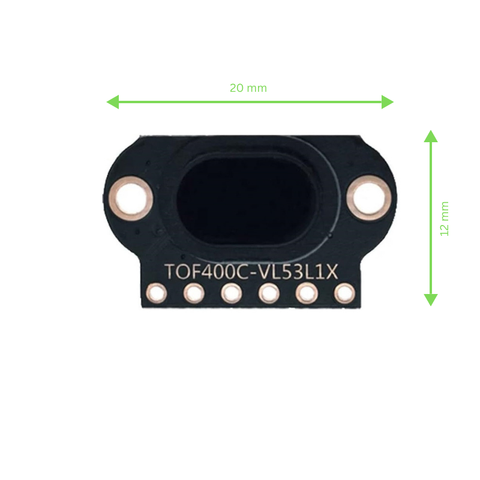

TOF400C-VL53L1X Time-of-Flight Distance Sensor Module 400 cm

The TOF400C-VL53L1X is a high-precision Time-of-Flight (ToF) distance sensor module capable of measuring distances from 4 to 400 cm. Based on the VL53L1X chipset with ST’s FlightSense™ technology and a SPAD array, it provides accurate measurements independent of target color or surface. Operating at a 940 nm infrared wavelength with optical filtering, it performs reliably in strong ambient light. The module features a 27° field of view, 50 Hz measurement rate, 1D gesture detection, and an I2C interface for easy integration with microcontrollers and embedded systems, making it suitable for robotics, automation, and object detection applications.

• Measurement Range: 4–400 cm for long-distance detection.
• Time-of-Flight Technology: VL53L1X FlightSense™ with SPAD array for accurate distance measurement.
• Field of View: 27° for wide coverage.
• Measurement Rate: Up to 50 Hz for fast response.
• Gesture Detection: 1D motion sensing for user interaction.
• Interface: I2C communication for easy integration with microcontrollers.
• Ambient Light Resistance: Reliable operation in strong lighting conditions.
• Mounting: Includes M2 screw holes and protective cover for secure installation.

• Sensor Type | TOF400C-VL53L1X Time-of-Flight Distance Sensor Module
• Chipset | VL53L1X with FlightSense™ Technology
• Measurement Range | 4–400 cm
• Dead Zone | 0–4 cm
• Distance Accuracy | ±6 cm (0.2–3 m typical)
• Field of View | 27°
• Measurement Rate | Up to 50 Hz
• Gesture Detection | 1D motion sensing
• Interface | I2C (default address 0x52, programmable)
• Interrupt Output | Yes
• Operating Voltage | 3–5 V DC
• Current Consumption | ~40 mA
• Operating Temperature | −20 °C to +70 °C
• Mounting | 2 × M2 screw holes
• Wavelength | 940 nm infrared

• 3D model on grabcad.com
• VL53L1X Datasheet

• VL53L1X/TOF400C Distance Sensor with Arduino
