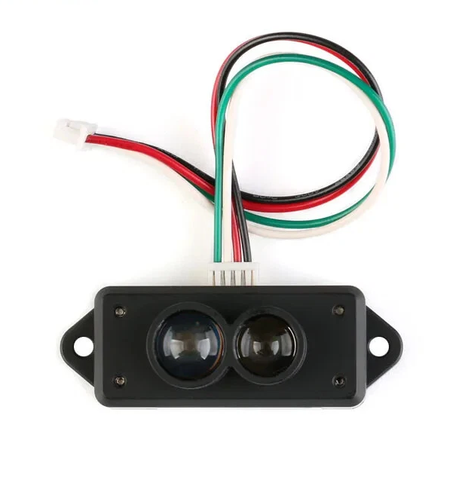

The TFMini Micro LiDAR Module is a compact unidirectional laser range finder based on time-of-flight (ToF) technology, capable of measuring distances from 0.3 m to 12 m. It provides high-precision distance data with a resolution of 5 mm, accuracy of 1% for distances under 6 m and 2% for 6–12 m, and a refresh rate of 100 Hz. The module operates at 4.5–6 V DC, consumes 0.6 W on average, and communicates via UART (TTL), making it compatible with Arduino and other microcontrollers. Its small size, low weight (4.7 g), and strong anti-light performance allow use in indoor and outdoor applications such as robotics, obstacle avoidance, autonomous vehicles, and altitude-hold drones. The 2.3° acceptance angle ensures precise distance measurement in targeted directions.
TF Mini Optical Stimulation Light Path
Measurement range schematic diagram
-
Measurement Range | 0.3 m to 12 m with high precision
-
Resolution | 5 mm minimum for accurate distance detection
-
Accuracy | 1% for distances <6 m, 2% for 6–12 m
-
Sampling Rate | 100 Hz refresh frequency for real-time measurement
-
Laser Type | 850 nm Class 1 eye-safe unidirectional ToF sensor
-
Operating Voltage | 4.5–6 V DC, average power 0.6 W
-
Communication Interface | UART (TTL) compatible with Arduino and microcontrollers
-
Acceptance Angle | 2.3° for targeted distance measurement
-

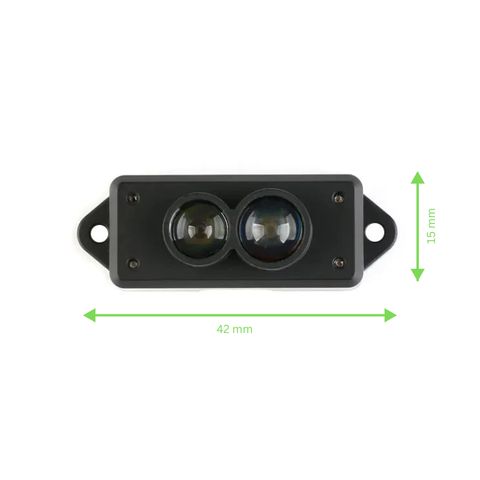

Module Size & Weight | 42 × 15 × 16 mm, 4.7 g for compact integration
-
Operating Voltage | 4.5–6 V DC
-
Average Power Consumption | 0.6 W
-
Communication Interface | UART (TTL)
-
Module Dimensions | 42 × 15 × 16 mm (L × W × H)
-
Weight | 4.7 g
-
Measurement Range | 0.3–12 m (indoor)
-
Resolution | 5 mm
-
Accuracy | 1% (<6 m), 2% (6–12 m)
-
Refresh Rate | 100 Hz
-
Acceptance Angle | 2.3°
-
Laser Wavelength | 850 nm
-
Operating Temperature | 0 °C to 60 °C
-
Storage Temperature | -20 °C to 75 °C
-
Ambient Light Immunity | Up to 70 klux
