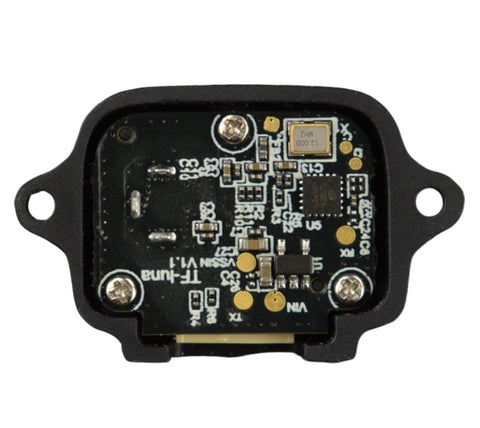

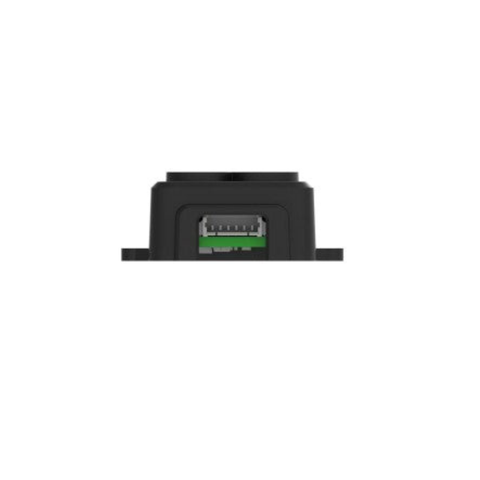

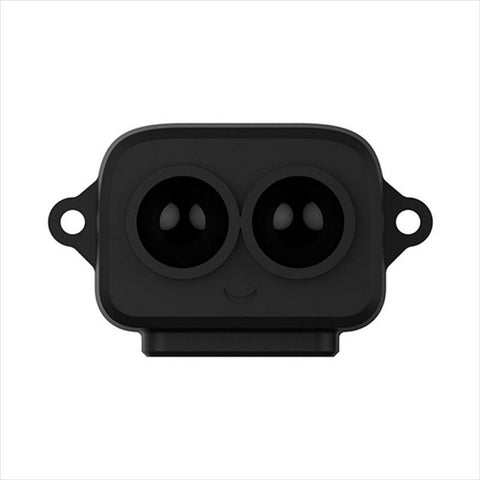

TF-Luna ToF LiDAR Sensor Single-Point 8m UART/I2C

The TF-Luna ToF LiDAR Sensor is a compact solid-state single-point ranging device designed for precise distance measurement from 0.2 to 8 meters. It features 1 cm resolution, ±6 cm accuracy within 0.2–3 m, a 2° field of view, and a 100 Hz measurement frequency. The sensor operates at 5 V DC, tolerates ambient light up to 70 klux, and provides data output via UART or I²C interfaces. Its lightweight design (<5 g) makes it suitable for integration in robotics, obstacle detection, automation systems, and other embedded development projects requiring rapid and reliable distance sensing.

• Distance Measurement: Ranges from 0.2 to 8 meters with 1 cm resolution.
• Accuracy: ±6 cm within 0.2–3 m for precise distance sensing.
• Measurement Frequency: 100 Hz for real-time updates.
• Field of View: 2° detection cone for focused single-point measurement.
• Interface: UART and I²C communication for easy integration with microcontrollers.
• Supply Voltage: 5 V DC ±0.1 V for stable operation.
• Ambient Light Resistance: Up to 70 klux for reliable performance in bright environments.

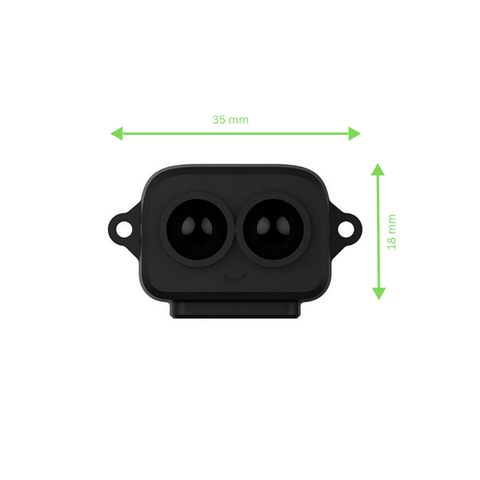

• Compact Design: Lightweight sensor (<5 g) suitable for embedded systems and robotics.

• 3D model on grabcad.com
• TF-Luna LiDAR Range Sensor - waveshare

• TF-Luna LiDAR (8m) Datasheet
• TF-Luna LiDAR (8m) Product Manual

• Solid State LiDAR (Laser Radar) Selection Guide

• TF Luna LIDAR with ESP32 & Raspberry Pi Pico
