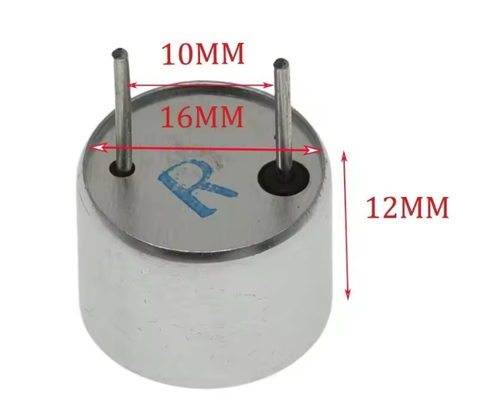

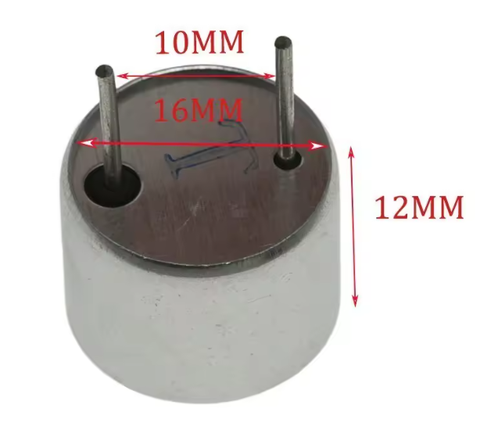

TCT TCT40-16T/R Piezoelectric Ultrasonic Sensor Transceiver, 40 kHz

The TCT TCT40-16R is a 40 kHz ultrasonic sensor transceiver designed for precise distance measurement and object detection. It integrates both emission and reception functions, with a narrow beam angle of 60° ±15° and a typical detection range of up to 4 meters in air. The sensor operates at 5 V DC with low current consumption, producing a sound pressure level of at least 112 dB and a receiving sensitivity of ≥-65 dB. It features a capacitance of 2400 pF ±20% and supports operation in temperatures from -20 °C to +70 °C. The module is compatible with standard microcontrollers and embedded systems, making it suitable for robotics, automation, and level sensing applications.

• Transducer Type: Piezoelectric ceramic for ultrasonic signal emission and reception

• Nominal Frequency: 40 kHz with ±1 kHz tolerance for precise detection

• Sound Pressure Level: ≥117 dB at 0 dB = 0.02 mPa for consistent signal output

• Receiving Sensitivity: ≥-65 dB at 0 dB = 1 V/Pa for accurate echo detection

• Capacitance: 2500 pF ±30% supporting standard driving circuits

• Maximum Driving Voltage: 80 V peak-to-peak for safe operation

• Beam Angle / Directivity: 60° ±15° (-6 dB) for targeted sensing

• Operating Temperature: -20 °C to +70 °C with stable performance across environmental variations

• Brand / Model | TCT TCT40-16T/R

• Product Type | Piezoelectric Ultrasonic Sensor Transceiver

• Nominal Frequency | 40 kHz ±1 kHz

• Emitted Sound Pressure Level | ≥117 dB (0 dB = 0.02 mPa)

• Receiving Sensitivity | ≥-65 dB (0 dB = 1 V/Pa)

• Capacitance | 2500 pF ±30%

• Maximum Driving Voltage | 80 V peak-to-peak

• Beam Angle / Directivity | 60° ±15° (-6 dB)

• Operating Voltage | 5 V DC typical

• Operating Temperature Range | -20 °C to +70 °C

• Storage Temperature Range | -40 °C to +80 °C

• Applications | Ultrasonic ranging, robotics, parking detection, liquid level sensing, proximity switches
