SW-520D Tilt Sensor Module Digital Output

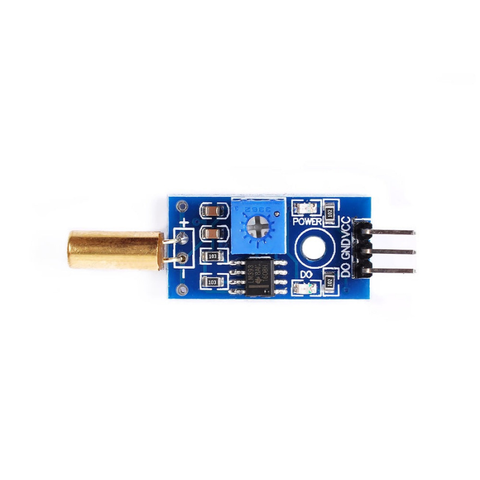

The SW-520D Tilt Sensor Module is an orientation detection device that uses a ball switch mechanism combined with an LM393 comparator to provide a stable digital output. It operates within a voltage range of 3.3–5 V and delivers a clean 0/1 signal with reliable switching performance. The module features a high-sensitivity SW-520D sensor capable of detecting changes in angle and motion, making it suitable for position sensing applications. Its onboard comparator ensures consistent waveform output and supports driving currents above 15 mA. The module is compatible with microcontrollers such as Arduino and other embedded systems, and includes mounting holes for straightforward integration into electronic projects.

• SW-520D Ball Switch: Detects tilt and orientation via conductive ball contact mechanism.
• LM393 Comparator IC: Generates stable digital output with noise-resistant signal conditioning.
• Operating Voltage Range: Supports 3.3–5 V DC input for compatibility with embedded systems.
• Digital Output Signal: Provides binary output (logic 0/1) for direct interfacing.
• Output Current Capability: Drives loads with output current greater than 15 mA.
• Sensitivity Response: Detects small angular changes with consistent switching behavior.

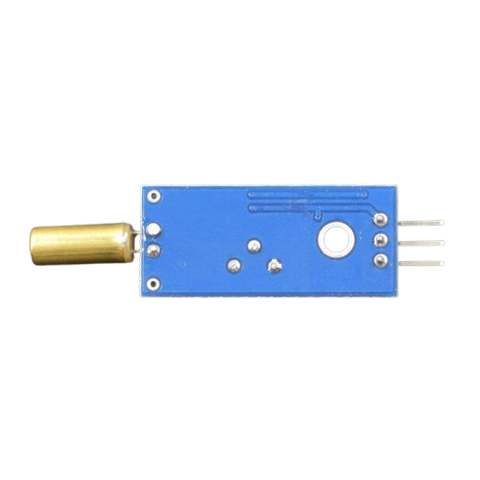

• PCB Mounting Holes: Enables mechanical stability and straightforward installation.

• Sensor Type | SW-520D Ball Tilt Switch

• Comparator IC | LM393 Dual Comparator

• Operating Voltage | 3.3–5 V DC

• Output Type | Digital (Logic 0 / Logic 1)

• Output Current | ≥ 15 mA

• Response Mechanism | Mechanical Ball Contact

• Sensitivity | Angle-Based Tilt Detection

• Signal Conditioning | Onboard Comparator with Clean Digital Output

• Mounting Type | PCB Module with Fixed Mounting Holes

• Operating Temperature | −25 °C to +70 °C

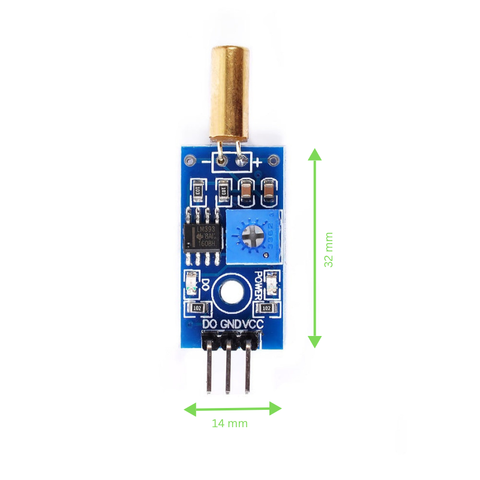

• Dimensions | Approximately 32 mm × 14 mm

• Weight | Approximately 3 g
