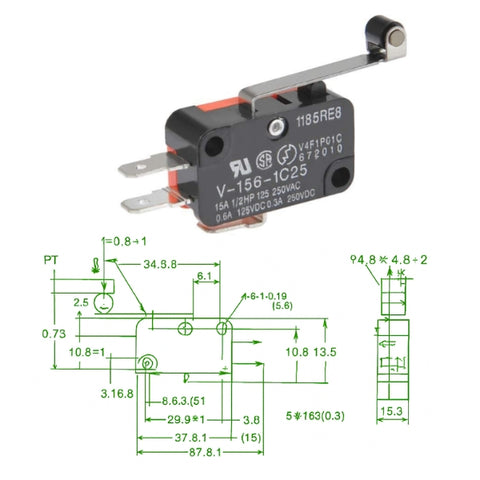

V-156-1C25 SPDT Limit Switch – Hinge Roller Lever, 15A

The V-156-1C25 SPDT limit switch is a compact electromechanical switch designed for position detection and mechanical limit control in industrial and automation systems. It features a long hinge roller lever actuator and a single-pole double-throw (SPDT) contact configuration for flexible circuit control. Rated for both AC and DC applications, it ensures stable switching performance under repeated mechanical actuation. Built with a durable plastic and metal housing, it provides reliable operation in demanding environments. Suitable for 3D printers, CNC machines, and automation equipment.

• SPDT contact configuration with 1NO and 1NC

• Long hinge roller lever actuator for smooth triggering

• Rated up to 15A at 125/250V AC

• Supports both AC and DC switching applications

• Compact mechanical design for tight installations

• Durable plastic and metal construction

• High repeatability for consistent switching performance

• Three-terminal interface for flexible wiring

• Roller lever reduces mechanical wear

• Suitable for limit detection and safety interlocks

• Standard mounting holes for easy installation

• Reliable operation in automation environments

• Model: V-156-1C25

• Switch Type: SPDT (1NO + 1NC)

• Rated Current: 15A AC

• Rated Voltage: 125/250V AC

• DC Rating: 0.6A at 125V DC, 0.3A at 250V DC

• Actuator Type: Hinge Roller Lever

• Number of Terminals: 3

• Contact Type: Snap-action

• Material: Plastic and metal

• Switch Dimensions: 27.9 × 16 × 9.9 mm

• Actuator Length: 50.8 mm

• Mounting Hole Diameter: 3.3 mm

• Terminal Width: 4.8 mm
