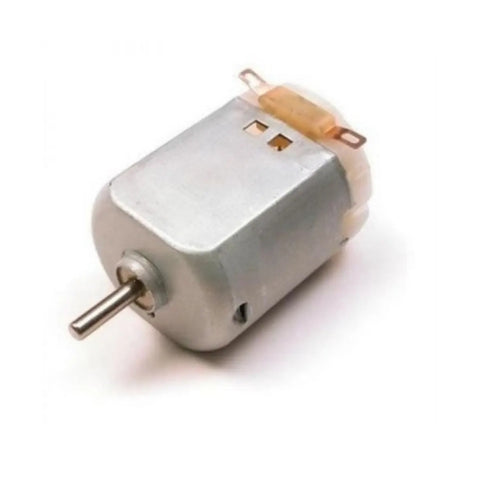

Small Brushed DC Motor MR01 – 3V 16500 RPM with Jumper Wires

The MR01 small brushed DC motor is a compact and lightweight motor designed for low-voltage applications and embedded systems. It operates at a rated voltage of 3V DC and delivers high rotational speed with stable performance. The motor features low noise operation, efficient power consumption, and a simple cylindrical design for easy integration. It comes with jumper wires for quick connection, making it suitable for prototyping, educational projects, and small robotic systems.

• Compact cylindrical brushed DC motor design

• Operating voltage range 1.5V to 4.5V DC

• High speed up to 16600 RPM (no load)

• Stable rated speed 13100 RPM under load

• Low noise operation for quiet applications

• Lightweight construction around 20–25 g

• Shaft diameter 2 mm for standard couplings

• Pre-attached jumper wires for easy connection

• Efficient current consumption design

• Suitable for battery-powered circuits

• Simple integration with Arduino and DIY systems

• Durable structure for long operational life

• Operating Voltage: 1.5V – 4.5V DC

• Rated Voltage: 3V DC

• No Load Speed: 16600 RPM

• Rated Load Speed: 13100 RPM

• No Load Current: ≤ 0.28A

• Rated Load Current: ≤ 1.07A

• Rated Torque: 8.0 g·cm

• Shaft Diameter: 2 mm

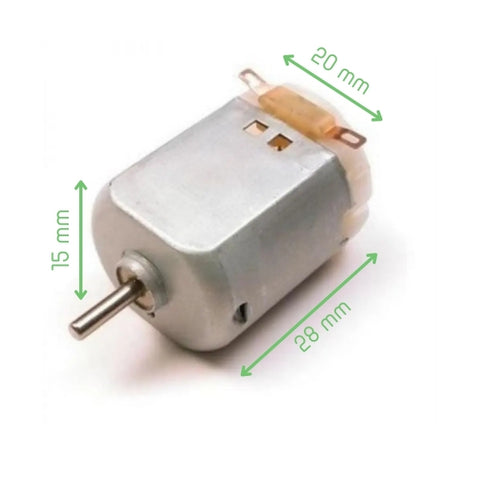

• Motor Diameter: 20 mm

• Motor Length: 25 mm (excluding shaft)

• Motor Type: Brushed DC Motor
• Connection Type: Jumper Wires Attached

• Model: MR01
