KBU810 Single Phase Full Wave Bridge Rectifier

The KBU810 is a single phase full wave bridge rectifier designed for converting AC input into DC output.
It integrates four rectifier diodes in a single compact package for efficient full-wave rectification.
The device supports high reverse voltage and moderate forward current handling.
Its robust construction ensures stable operation in power supply and AC-DC conversion circuits.
Common applications include linear power supplies, chargers, and general rectification stages.

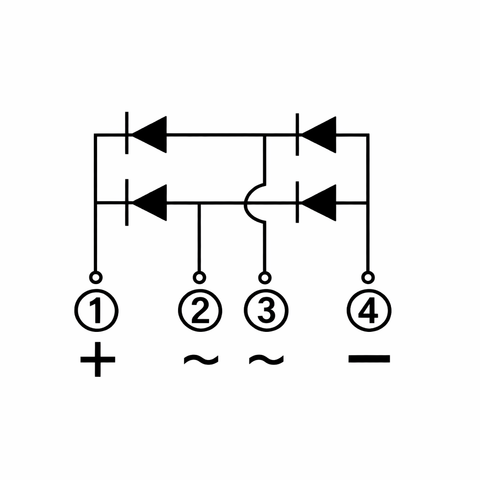

• Full Wave Bridge Configuration enabling efficient AC to DC conversion

• Integrated Rectifier Diodes housed in a single package

• High Reverse Voltage Rating suitable for mains-derived supplies

• Low Forward Voltage Drop improving conversion efficiency

• High Surge Current Capability supporting inrush conditions

• KBU Package allowing easy PCB mounting

• Model | KBU810

• Device Type | Single Phase Full Wave Bridge Rectifier

• Maximum Repetitive Reverse Voltage | 1000 V

• Average Forward Rectified Current | 8 A

• Peak Forward Surge Current | 200 A

• Forward Voltage Drop (Typical) | 1.1 V per diode

• Operating Temperature Range | −55 °C to 150 °C

• Mounting Type | Through-hole

• Package Type | KBU

• Polarity Configuration | Bridge Rectifier
