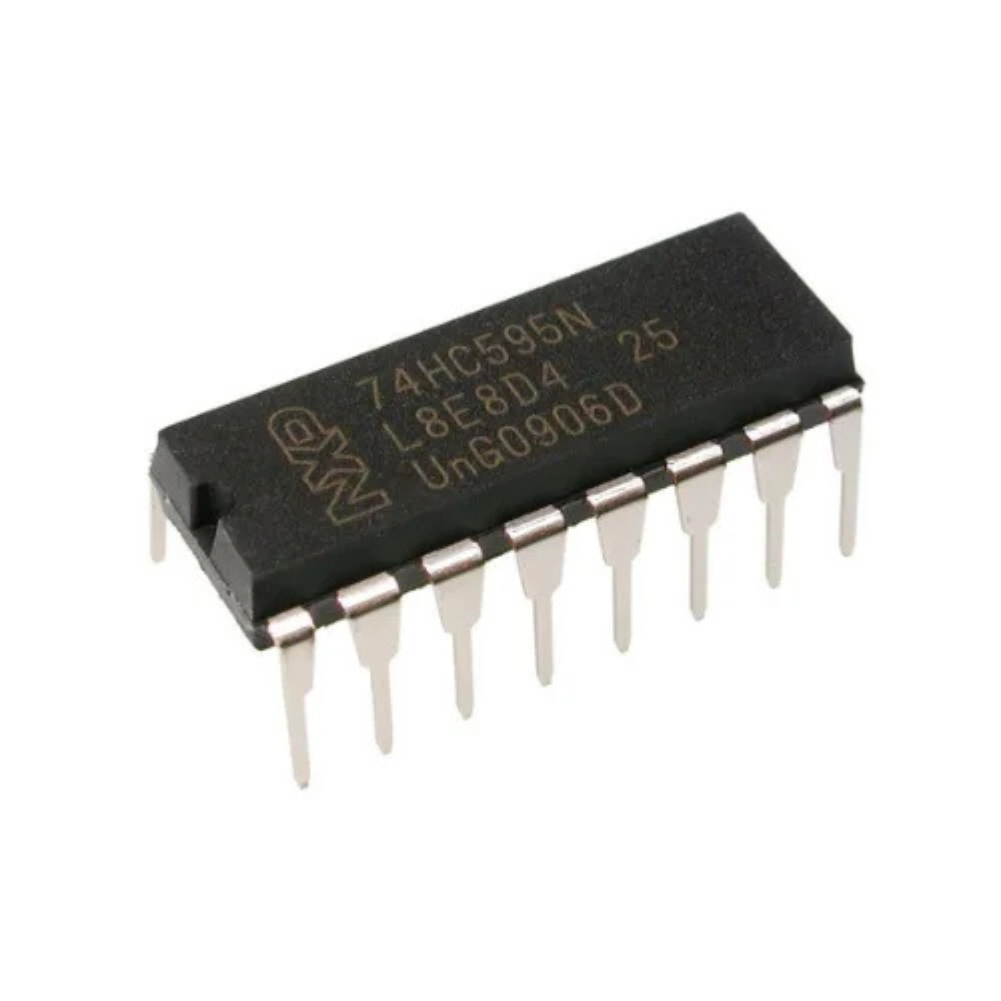

74595 8-Bit Serial-In Parallel-Out Shift Register IC

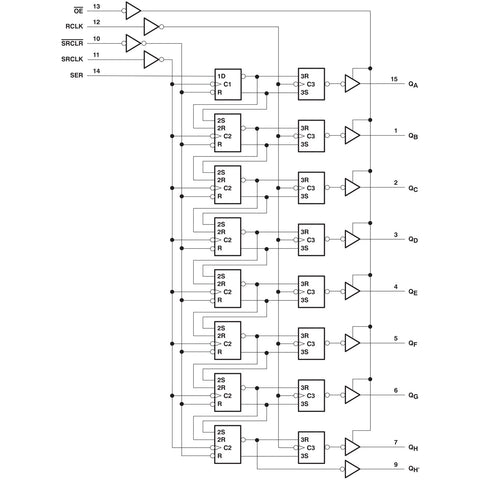

The 74595 is a TTL-compatible logic IC that implements an 8-bit serial-in, parallel-out shift register with output latches.
It allows serial data to be shifted in and presented simultaneously on parallel outputs.
The device operates from a single 5 V supply and supports three-state outputs for bus interfacing.
Separate shift and storage clocks enable controlled data transfer and output updating.
Typical applications include I/O expansion, LED driving, data buffering, and digital control systems.

• 8-Bit Shift Register Architecture providing serial-to-parallel data conversion

• Output Latch Stage enabling stable parallel outputs

• Three-State Output Control supporting shared bus operation

• Separate Shift and Latch Clocks for flexible timing control

• TTL-Compatible Logic Levels for digital systems

• Through-Hole DIP Package for breadboard and PCB use

• Model | 74595

• Device Type | 8-Bit Serial-In Parallel-Out Shift Register IC

• Logic Compatibility | TTL Compatible

• Register Width | 8 bits

• Clock Inputs | Shift Clock, Storage Clock

• Output Type | Three-State

• Supply Voltage | 5 V

• Maximum Clock Frequency | 25 MHz

• Propagation Delay (Typical) | 13 ns

• Power Consumption (Typical) | 60 mW

• Operating Temperature Range | 0 °C to 70 °C

• Package Type | 16-Pin DIP
