RPLIDAR A2M12 360° LiDAR Laser Scanner 12m Range

The RPLIDAR A2M12 is a 360° 2D LiDAR laser scanner designed for precise distance measurement and real-time environmental mapping. It operates over a range of up to 12 meters with a scanning rate of 10 Hz and a sampling rate of up to 8,000 samples per second. Equipped with a brushless motor, it provides stable and durable performance suitable for SLAM, indoor navigation, and robotic applications. The device features serial communication via UART and USB (with adapter) and is compact and lightweight (~190 g), enabling integration with robotic platforms, drones, and embedded systems while maintaining low power consumption.

• 360° Laser Scanning: Captures full environmental data for complete mapping and navigation.
• Scanning Range: Measures distances up to 12 meters with high accuracy.
• Sampling Rate: Up to 8,000 samples per second for detailed and responsive measurements.
• Rotational Speed: Typical scan rate of 10 Hz for real-time mapping.
• Brushless Motor: Provides enhanced durability and stable operation.
• Communication Interface: Supports UART and USB (via adapter) for system integration.
• Compact and Lightweight: Approx. 190 g, suitable for robotic and embedded platforms.
• Power Consumption: Operates efficiently on 5 V DC for mobile and battery-powered systems.

• Sensor Type | RPLIDAR A2M12 2D LiDAR Laser Scanner
• Laser Class | Class 1 Infrared
• Wavelength | 785 nm
• Operating Voltage | 5 V DC
• Power Consumption | Low power operation, ≤ 0.5 W typical
• Scanning Range | 0.15–12 m
• Scanning Angle | 360°
• Rotational Speed | 10 Hz typical
• Sampling Rate | Up to 8,000 samples per second
• Distance Accuracy | <1% typical
• Angle Resolution | 0.45°–1.35° depending on rotation speed
• Communication Interface | UART (3.3 V TTL) / USB via adapter

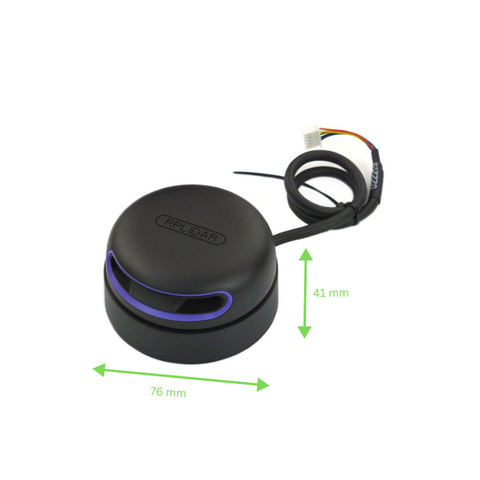

• Dimensions | 76 mm (Diameter) × 41 mm (Height)
• Weight | ~190 g
• Operating Temperature | 0 °C to 40 °C
