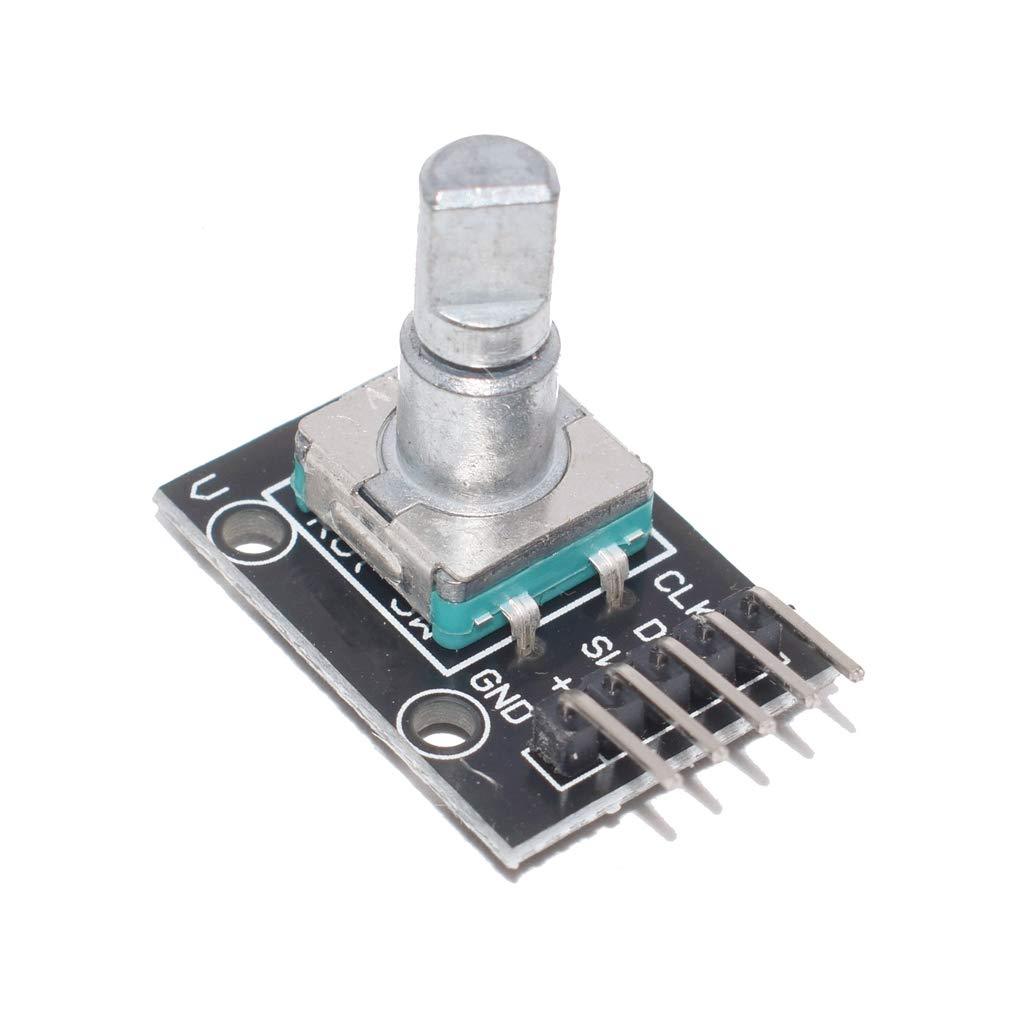

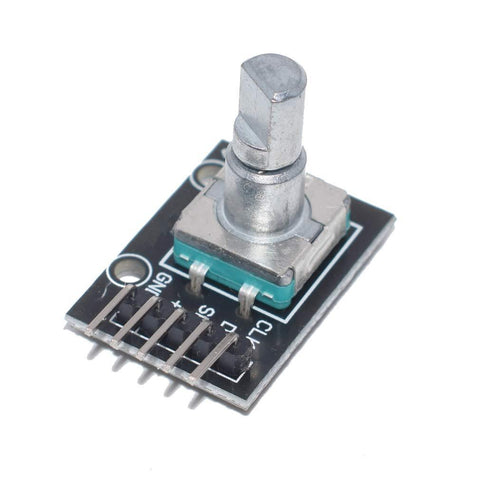

Rotary Encoder Module – Incremental Rotation with Push Button

The rotary encoder module is an input device designed for precise rotational control in embedded systems and user interfaces. Unlike potentiometers, it supports continuous 360° rotation without mechanical limits, enabling accurate incremental position tracking. This version features heat-resistant materials and slightly updated dimensions for improved durability. It also includes an integrated push-button switch for additional input functionality. Suitable for menu navigation, parameter adjustment, and control panel applications.

• Incremental rotary encoder for continuous rotation input

• Unlimited 360° rotation without end stops

• Integrated push-button switch for additional control

• Heat-resistant material for improved durability

• Digital pulse output for position detection

• High resolution step-based rotation feedback

• Stable signal output for microcontroller interfacing

• Compact design for embedded applications

• Standard shaft compatible with common knobs

• Suitable for Arduino and similar platforms

• Reliable mechanical structure for repeated use

• Easy integration in control panels and UI systems

• Product Type: Rotary encoder module

• Rotation Type: Incremental (continuous rotation)

• Number of Channels: 2 (A and B outputs)

• Switch Type: Integrated push button

• Output Signal: Digital pulse

• Operating Voltage: 3.3–5V DC

• Material: Heat-resistant plastic and metal

• Shaft Type: Standard round shaft

• Mounting Type: Panel or PCB mount

• Detent Steps: Typically 20 steps per revolution

• Dimensions: Approx. 20mm × 20mm × 15mm

• Operating Temperature: −20°C to 70°C

• Compatibility: Arduino, microcontrollers
