RGB LED Stick (8 LEDS)

Part ID: VT-1203
  • Sale
  • Regular price 11 QAR

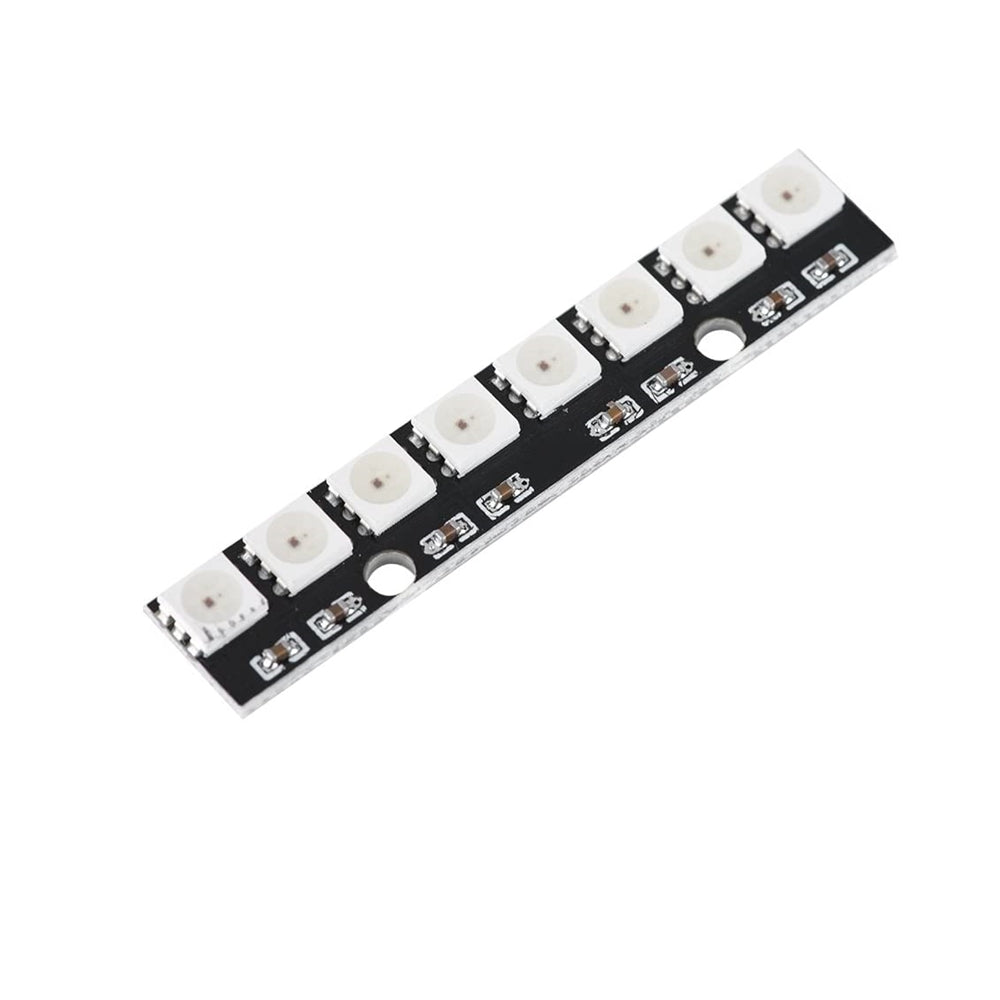

Make your own little LED strip arrangement with this stick of NeoPixel LEDs. This stick crammed 8 of the tiny 5050 (5mm x 5mm) smart RGB LEDs onto a PCB with mounting holes and a chainable design. Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC (4-7V works) and you're ready to rock.

  • NeoPixel compatible
  • 8 Addressable RGB LED in series
  • Viewing angle: 120 degrees
  • Red: (620-630nm) @ 550-700mcd
  • Green: (515-530nm) @ 1100-1400mcd
  • Blue: (465-475nm) @ 200-400mcd
  • Dimensions: 51.10mm / 2" x 10.22mm / 0.4" x 3.19mm / 0.12"
  • Weight: 2.57g
  • May ship with either WS2812B or SK6812-based LEDs. They are the same brightness, color and protocol
