1N4007 Rectifier Diode 1A 1000V – DO-41 Package (5 pcs)

The 1N4007 is a general-purpose rectifier diode designed for power conversion, reverse polarity protection, and rectification applications. It supports up to 1A average forward current and a peak repetitive reverse voltage of 1000V, making it suitable for a wide range of AC-to-DC circuits. The diode features low forward voltage drop, stable electrical performance, and reliable high-voltage operation. Housed in a DO-41 axial package, it is commonly used in power supplies, adapters, battery chargers, and electronic repair projects.

• General-purpose silicon rectifier diode

• Peak repetitive reverse voltage up to 1000V

• Average forward rectified current of 1A

• Low forward voltage drop

• High surge current capability

• Reliable high-temperature operation

• DO-41 axial lead package

• Suitable for AC-to-DC rectification

• Fast recovery characteristics for general circuits

• High insulation and voltage endurance

• Stable performance in power supply applications

• Compatible with through-hole PCB assembly

• Suitable for reverse polarity protection circuits

• Commonly used in adapters and chargers

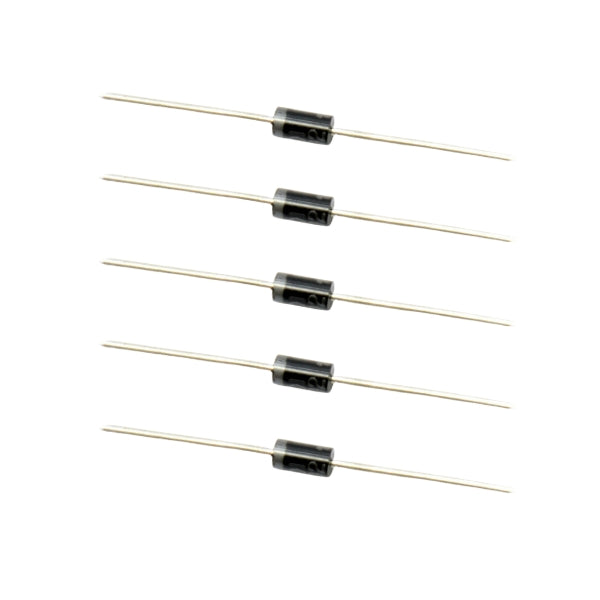

• Supplied as a pack of 5 pieces

• Diode Type: General-Purpose Rectifier Diode

• Model Number: 1N4007

• Package Type: DO-41 Axial

• Average Forward Current: 1A

• Peak Repetitive Reverse Voltage: 1000V

• Non-Repetitive Peak Surge Current: 30A

• Forward Voltage Drop: 1.1V Max @ 1A

• Reverse Current: 5µA Max

• Operating Junction Temperature: -55°C to +150°C

• Mounting Type: Through-Hole

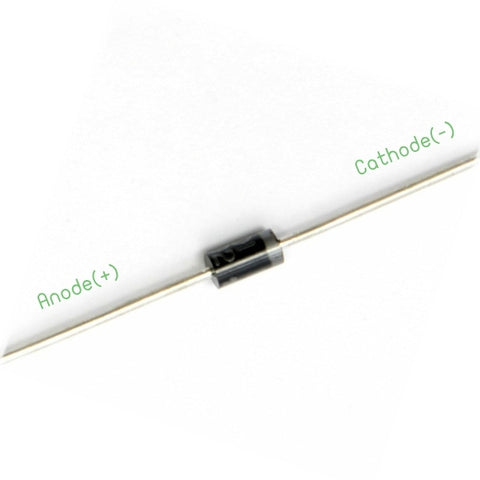

• Polarity: Cathode Band Marked

• Body Material: Molded Plastic

• Lead Material: Tin-Plated Copper

• Dimensions: 5.2 × 2.7 mm Approx.

• Package Quantity: 5 Pieces
