Raspberry Pi Compute Module 5 Single-Board Computer – Industrial Form Factor

  • Sale
  • Regular price 234 QAR
Product ID: VT-4375
5 in stock


The Raspberry Pi Compute Module 5 is an embedded single-board computer designed for custom hardware and industrial integration. It is based on a modern multi-core ARM processor and supports high-speed interfaces for display, storage, and connectivity. The module is engineered for stable performance and long-term availability, ensuring reliable operation in embedded systems. Its compact form factor allows direct integration into carrier boards and specialized designs. Suitable for industrial control, embedded computing, and professional prototyping applications.

  • ARM-based multi-core processor architecture
  • 64-bit processing support
  • High-speed PCIe interface availability
  • Dual HDMI display support via carrier board
  • MIPI CSI camera interface compatibility
  • MIPI DSI display interface compatibility
  • LPDDR memory configurations
  • Optional onboard eMMC storage
  • Gigabit Ethernet support via carrier board
  • USB host and device interface support
  • Compact compute module form factor
  • Board-to-board connector interface
  • Hardware video acceleration support
  • Low-power embedded system operation
  • Extended temperature operation capability
  • Secure boot and hardware security features
  • Long-term availability lifecycle
  • Linux operating system compatibility
  • Industrial-grade integration support
  • Custom carrier board design flexibility
  • Processor: Broadcom BCM2712 quad-core ARM Cortex-A76 at 2.4 GHzGPU:
  • VideoCore VII with 4K display support
  • Architecture: 64-bit ARMv8-A
  • Memory: 2 GB, 4 GB, 8 GB, or 16 GB LPDDR4X (variant dependent)
  • Memory Bandwidth: High-speed LPDDR4X interface
  • Storage: Onboard eMMC up to 32 GB or external via PCIe NVMe
  • Display Support: Dual 4K HDMI output via DSI
  • Camera Support: Dual MIPI CSI camera interfaces
  • PCIe Interface: PCIe Gen 2 x1 lane
  • USB Interface: USB 3.0 support via carrier board
  • GPIO: Exposed GPIO via board-to-board connector
  • Power Input: 5 V DC via edge connector
  • Operating Temperature: 0 °C to 50 °C
  • Form Factor: Compute Module

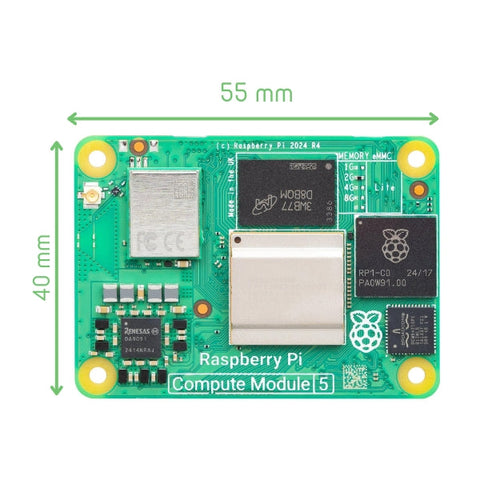

  • Dimensions: 55 × 40 mm
