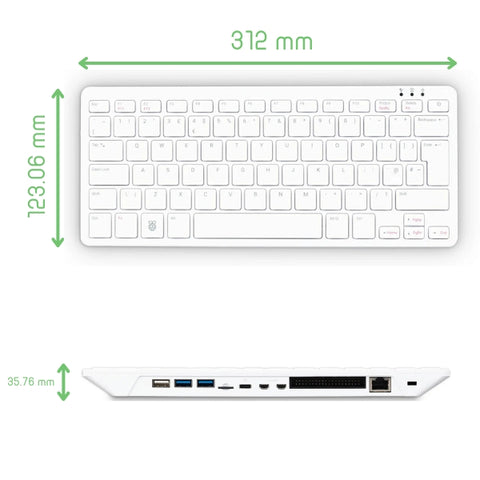

The Raspberry Pi 500 is an integrated single board computer designed for compact desktop computing and education. It is based on a quad-core 64-bit Arm processor and the RP1 I/O controller, providing performance comparable to Raspberry Pi 5. A built-in one-piece aluminium heatsink ensures stable thermal performance and reliable operation under sustained workloads, while supporting dual 4K display output. Supplied with 8 GB RAM and a 32 GB microSD card preloaded with Raspberry Pi OS, it is suitable for web browsing, document creation, media playback, and programming education. It is compatible with standard Raspberry Pi peripherals and is intended for classrooms, laboratories, and structured learning environments.
Features
- Quad-core 64-bit Arm Cortex-A76 CPU at 2.4 GHz
- 512 KB L2 caches with shared 2 MB L3 cache
- VideoCore VII graphics processor
- 8 GB LPDDR4X-4267 SDRAM
- Dual-band 802.11ac Wi-Fi at 2.4 GHz and 5.0 GHz
- Bluetooth 5.0 and Bluetooth Low Energy support
- MicroSD slot with high-speed SDR104 support
- Two USB 3.0 ports with 5 Gbps operation
- One USB 2.0 port
- Gigabit Ethernet connectivity
- Dual micro-HDMI display outputs
- 40-pin GPIO expansion header
- Kensington security lock slot
- 5 V 5 A DC input via USB-C
- Integrated power button on keyboard
- UK keyboard layout
