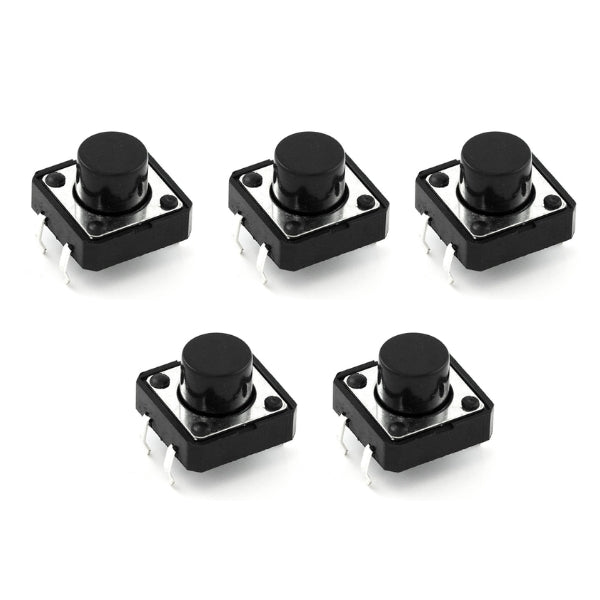

Push Button Switch 12mm – Momentary Tactile, Breadboard Friendly (5 Pack)

The Push Button Switch 12mm is a momentary tactile switch designed for prototyping, control inputs, and embedded electronics applications. It features a compact 12 × 12 × 7.3 mm form factor with a responsive tactile click, ensuring accurate user input. Rated for low-current operation up to 50 mA, it is suitable for signal-level switching in microcontroller circuits. The breadboard-friendly pin layout allows easy integration without additional wiring. Ideal for reset circuits, user interface buttons, and educational electronics projects.

• Momentary tactile switch mechanism

• 12mm standard square compact size

• Rated current up to 50 mA

• Breadboard-compatible pin spacing

• Responsive tactile click feedback

• Through-hole mounting design

• Durable mechanical structure

• Suitable for low-power circuits

• Easy integration with Arduino and microcontrollers

• Reliable contact performance

• Ideal for reset and input applications

• Lightweight and compact form factor

• Switch Type: Momentary tactile push button

• Operating Mode: Normally open (NO)

• Rated Current: 50 mA

• Rated Voltage: 12V DC (typical signal level use)

• Contact Resistance: ≤100 mΩ

• Insulation Resistance: ≥100 MΩ

• Actuation Force: ~160–260 gf

• Travel Distance: ~0.25 mm

• Mounting Type: Through-hole
• Pin Configuration: 4-pin standard layout

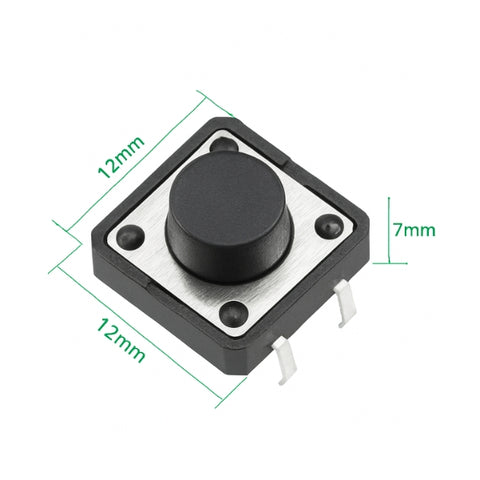

• Dimensions: 12 × 12 × 7.3 mm

• Material: Plastic housing with metal contacts

• Operating Temperature: -25°C to +70°C

• Push button 3D Model


• PB12M-C106S1 | Momentary Push Button Switch - 12mm Square (Big)
