Pololu QTR-1A Reflectance Sensor – Analog IR Line Sensor (2 Pack)

The Pololu QTR-1A Reflectance Sensor is a compact infrared reflectance module designed for line detection, edge sensing, and short-range proximity measurement. It integrates an IR LED and phototransistor that produce an analog voltage proportional to reflected light intensity. Operating at 5 V with a typical current consumption of 17 mA, the sensor delivers reliable readings for high-contrast surface detection. Its small 12.7 × 7.6 mm footprint allows installation in dense arrays, making it suitable for robotics, automation, and embedded sensing applications.

• Infrared LED and phototransistor reflectance sensing pair

• Analog voltage output proportional to reflected IR light

• 5 V operating voltage compatible with microcontrollers

• Typical current consumption around 17 mA

• High sensitivity for line detection and contrast sensing

• Optimal sensing distance around 3 mm

• Maximum recommended detection distance up to 6 mm

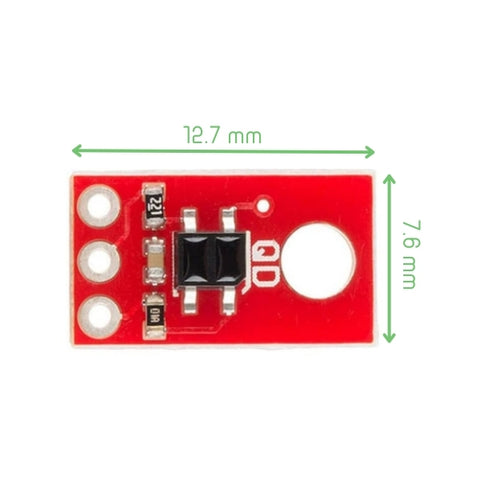

• Compact 12.7 × 7.6 mm PCB for dense sensor arrays

• Integrated current-limiting resistor for safe LED operation
• Suitable for line follower and edge detection robots

• Direct interface with analog inputs on Arduino boards

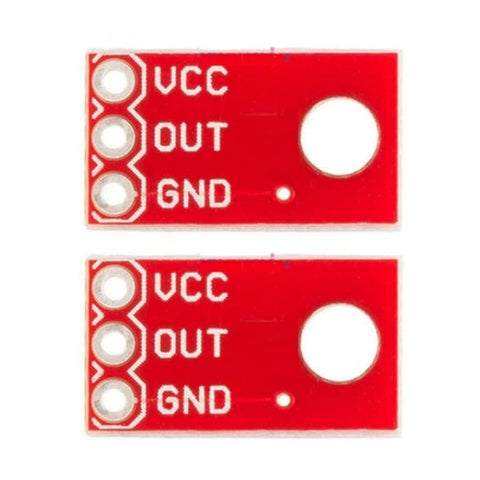

• Supplied as 2 sensors per package

• Operating Voltage: 5V DC
• Typical Current Consumption: 17mA

• Output Type: Analog Voltage Output

• Output Voltage Range: 0V to Supply Voltage

• Optimal Sensing Distance: 3mm

• Maximum Recommended Distance: 6mm

• IR Emitter Type: Infrared LED

• Receiver Type: Phototransistor with Pull-up Resistor

• PCB Dimensions: 12.7mm × 7.6mm × 2.5mm

• Mounting Orientation: Parallel to sensing surface

• Interface Type: Analog Input (ADC)

• Sensor Weight: 0.2g per sensor

• Pack Quantity: 2 Sensors
