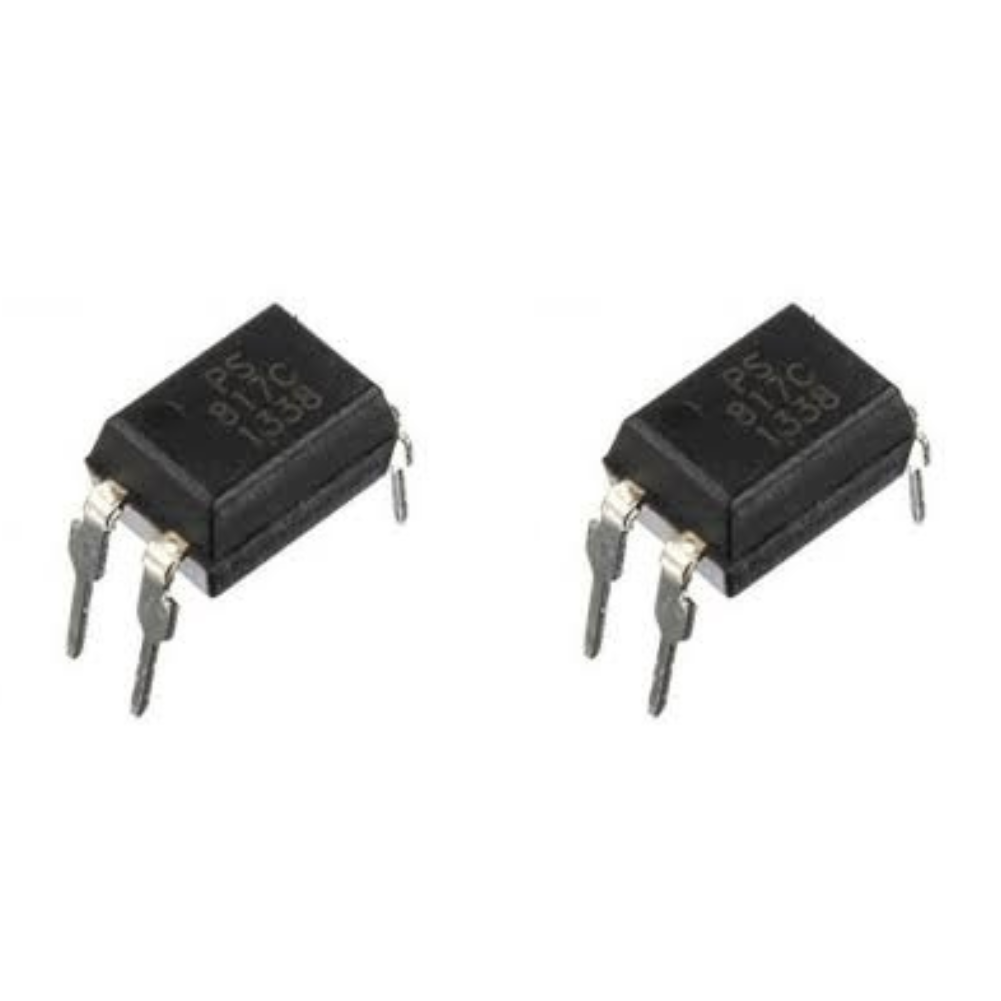

PC817 Optocoupler DIP-4 Phototransistor Output - 2 Pieces

The PC817 is an optocoupler designed to provide electrical isolation between input and output circuits using an infrared LED and phototransistor.
It enables safe signal transfer while preventing high-voltage transients from affecting low-voltage control circuits.
The device supports DC and low-frequency signal isolation in digital and analog systems.
Its DIP-4 package allows easy through-hole mounting and compact PCB layout.
This set includes two identical optocouplers suitable for prototyping and isolation applications.

• Infrared LED Input enabling optical signal transmission

• Phototransistor Output providing isolated signal switching

• High Isolation Voltage supporting safe signal separation

• Low Input Current Requirement suitable for logic-level control

• Fast Response Time for low-frequency signal applications

• DIP-4 Package allowing compact through-hole installation

• Model | PC817

• Device Type | Optocoupler

• Isolation Method | Infrared LED and phototransistor

• Number of Channels | 1

• Isolation Voltage | 5000 Vrms

• Collector-Emitter Voltage | 80 V

• Forward Current (LED) | 50 mA

• Current Transfer Ratio | 50 % to 600 %

• Operating Temperature Range | −30 °C to 100 °C

• Package Type | DIP-4

• Mounting Type | Through-hole

• Quantity | 2-pieces
