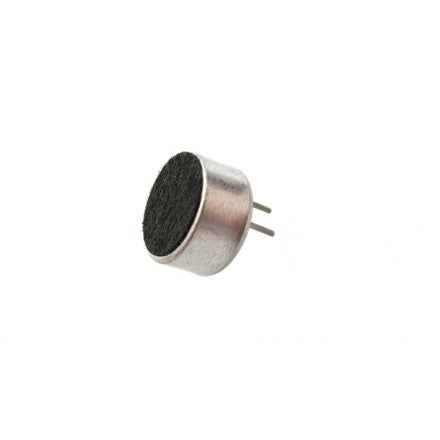

Omnidirectional Electret Microphone Capsule – 9.7 × 4.5 mm, Analog Output

The Omnidirectional Electret Microphone Capsule is a compact analog audio sensor designed for sound detection and voice capture in embedded systems and electronic projects. It features an electret condenser element with omnidirectional pickup, allowing it to detect sound from all directions with consistent sensitivity. Operating from a wide 1–10 V supply range with low current consumption, it provides reliable analog audio signals for amplification or processing circuits. Its small 9.7 mm diameter package with PC pin termination makes it suitable for integration into microphone modules, audio detectors, and voice-enabled prototypes.

• Electret condenser microphone element

• Omnidirectional sound pickup pattern

• Analog audio output signal

• Wide operating voltage range 1–10 V

• Rated operating voltage 4.5 V

• Low current consumption 500 µA

• Sensitivity −46 dB ±2 dB at 94 dB SPL

• Signal-to-noise ratio 58 dB

• Compact 9.7 mm diameter package

• Top port acoustic design

• Standard PC pin termination

• Suitable for sound detection circuits and audio modules



• Microphone Type: Electret Condenser Microphone

• Direction Pattern: Omnidirectional

• Output Type: Analog Signal

• Frequency Range: 100 Hz – 10 kHz

• Sensitivity: −46 dB ±2 dB @ 94 dB SPL

• Signal-to-Noise Ratio: 58 dB
• Rated Operating Voltage: 4.5 V

• Operating Voltage Range: 1 – 10 V

• Current Consumption: 500 µA

• Output Impedance: 2.2 kΩ

• Port Location: Top Port

• Termination Type: PC Pins

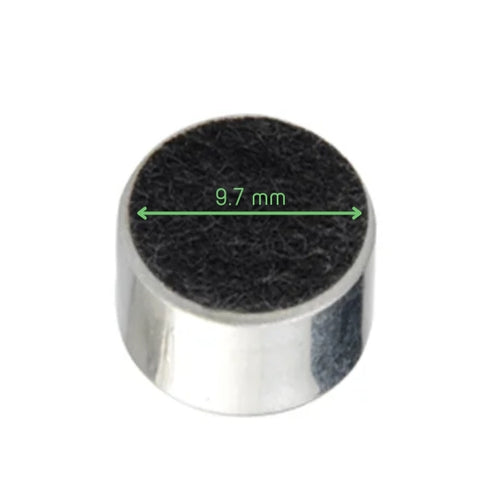

• Microphone Diameter: 9.7 mm

• Microphone Height: 4.5 mm
