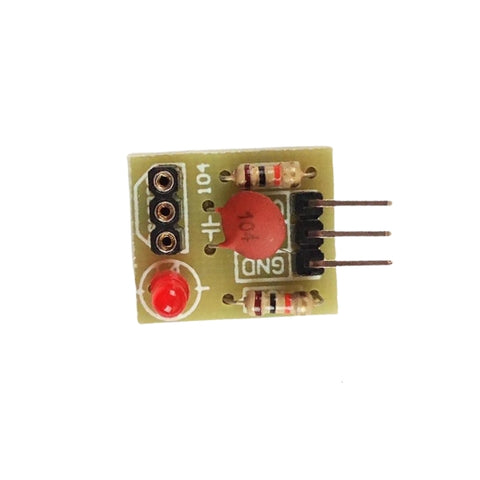

Non-Modulator Laser Receiver Sensor – 5V Digital Output

The Non-Modulator Laser Receiver Sensor is a compact optical detection module designed to receive direct laser signals and convert them into a digital output. It operates at 5V DC and provides a HIGH output when a laser signal is detected and a LOW output when no signal is present. The sensor is optimized for simple digital interfacing with microcontrollers and control systems. Its small PCB size makes it suitable for space-constrained designs. This module is ideal for laser detection, optical triggering, and basic communication or alignment applications.

• Non-modulated laser signal detection

• Digital HIGH/LOW output response

• 5V DC operating voltage

• Fast response to laser input

• Compact PCB size for small projects

• Direct microcontroller interfacing

• Stable signal output

• Simple two-state logic operation

• Low power consumption

• Suitable for indoor laser detection

• Operating Voltage: 5V DC

• Output Type: Digital (HIGH / LOW)

• Output Logic: HIGH when laser detected

• Output Logic (Idle): LOW when no laser detected

• Laser Type: Non-modulated laser

• Response Type: Direct optical detection

• PCB Size: 15 mm × 19 mm

• Mounting Type: PCB mount

• Signal Interface: Digital output pin

• Application Environment: Indoor use
