Non-Invasive Current Sensor SCT-013 – 30A Split Core AC Transformer

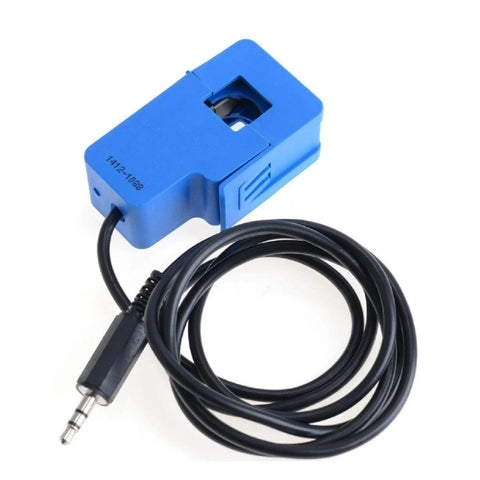

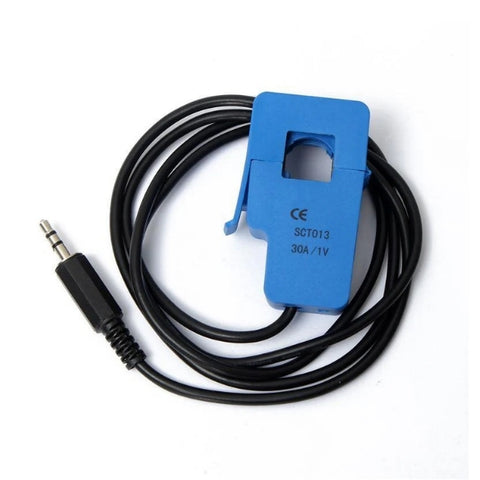

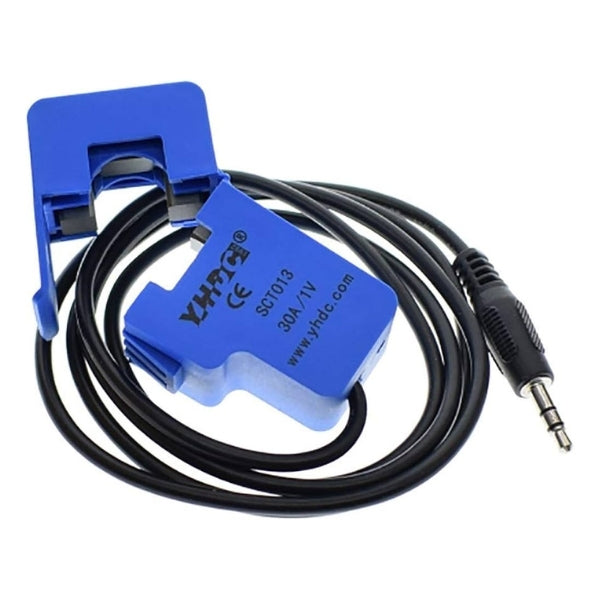

The SCT-013 Non-Invasive Current Sensor is a split-core current transformer designed for measuring AC current up to 30A without direct electrical contact. It converts the measured current into a proportional voltage output (30A:1V), enabling safe monitoring of electrical loads. The ferrite-core design provides stable measurement performance with strong electrical insulation and 6000V dielectric strength. This sensor can be clipped directly around a live or neutral wire, eliminating the need to cut or modify the circuit. It is widely used in energy monitoring systems, smart power meters, and building electricity consumption measurement projects.

• Split-core current transformer for non-invasive AC current measurement

• Measures AC current up to 30A

• Current-to-voltage output ratio 30A : 1V

• Ferrite magnetic core for stable sensing performance

• Clip-on design for quick installation without cutting wires

• High dielectric strength up to 6000V AC insulation

• UL94-V0 flame-retardant housing material

• Wide operating temperature range −25°C to 70°C

• Suitable for energy monitoring and smart metering systems

• Long 105cm output cable for flexible installation

• High mechanical durability with 1000+ opening cycles

• Compatible with Arduino and energy monitoring platforms

• Current Type: AC Current Transformer

• Maximum Measured Current: 30A

• Output Signal: 1V at 30A

• Core Material: Ferrite

• Sensor Type: Split Core Non-Invasive CT

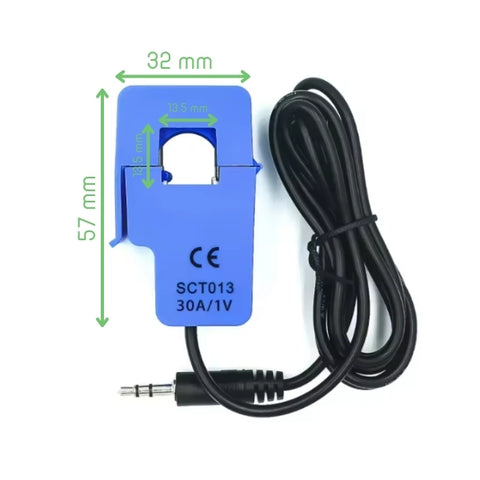

• Opening Size: 13mm × 13mm

• Dielectric Strength: 6000V AC / 1 min

• Flame Retardant Rating: UL94-V0

• Operating Temperature: −25°C to 70°C

• Mechanical Life: ≥1000 opening cycles

• Cable Length: 105cm

• Application: Energy monitoring and power measurement systems
