Nextion NX8048T070-Generic 7.0″ HMI TFT LCD Touch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD displays. Users quickly generate GUI Controls with minimal coding on the Nextion Editor. The microcontroller can then trigger these control using a simple UART interface.

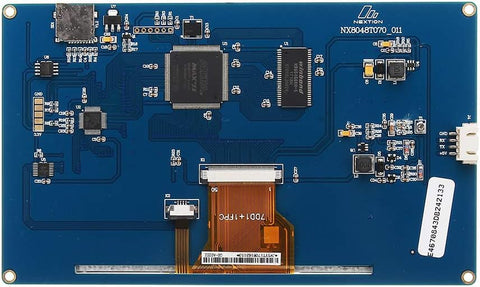

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend a lot of time on application development but get unsatisfactory results. As a solution to this situation, the Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It’s easy to adapt Nextion family HMI to existing projects. Users just need to provide it with a UART.

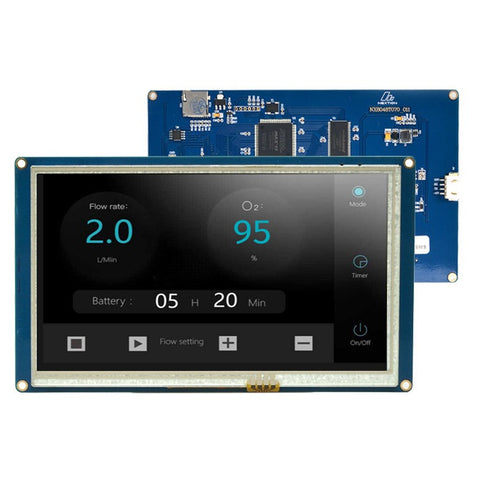

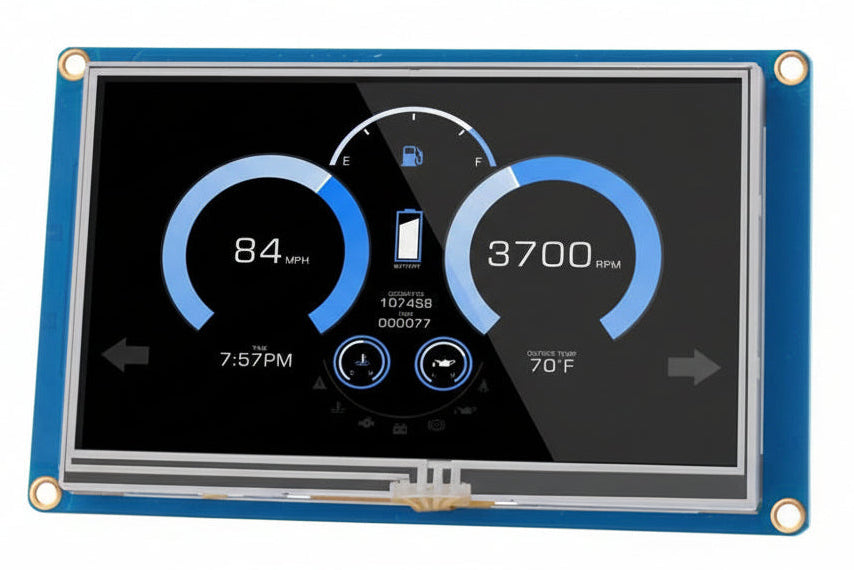

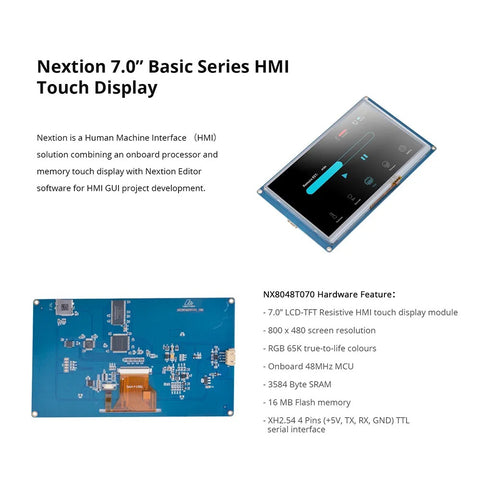

Nextion 7.0” HMI TFT Screen Intelligent Display Module with integrated 4-wire Resistive Touch Panel For Arduino DIY NX8048T070 800×480 is a powerful 7.0” HMI, which is a member of the Nextion family. Features include: a 7.0″ TFT 800×480 resistive touchscreen display, 16M Flash, 2KByte RAM, 65k colors.
The Nextion Displays are also available in different sizes - 2.4”, 2.8“ 3.2”, 3.5”, 4.3”, 5.0”, 7.0”, with Resistive and Capacitive Touch Screens, with Enclosures, etc. Contact us directly for more details.

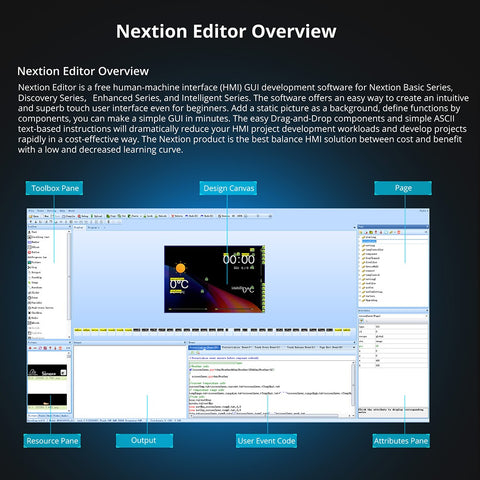

You can develop the HMI GUI project via the free Nextion Editor software, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.
The Nextion solution is the best balance HMI solution between cost and benefit with low and decreased learning curve.
