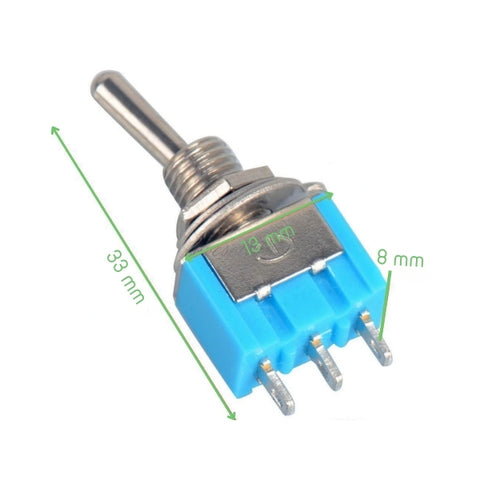

Mini Toggle Switch – SPST 2 Position 3 Pin 6A 125V

The Mini Toggle Switch is a compact SPST (Single Pole Single Throw) switch designed for basic ON/OFF control in electrical circuits. It features a simple 2-position toggle mechanism with reliable contact switching for stable performance. Rated at 3A 125VAC or 6A 125V, it supports low to moderate power applications. The switch includes a mounting face plate and threaded nuts for secure panel installation, making it suitable for control panels, DIY electronics, and embedded systems.

• SPST switching mechanism for simple ON/OFF control

• 2-position toggle operation

• 3-pin terminal configuration

• Rated 3A at 125VAC

• Rated 6A at 125V

• Compact mini toggle design

• Panel mount with threaded nuts included

• Standard 6 mm mounting hole size

• Durable metal lever actuator
• Stable electrical contact performance

• Easy integration into circuits

• Suitable for AC and DC applications

• Switch Type: SPST (Single Pole Single Throw)

• Actuator Type: Toggle lever

• Switch Positions: 2 Position (ON-OFF)

• Number of Pins: 3 Pins

• Rated Voltage: 125V AC

• Rated Current: 3A @ 125V AC

• Rated Current (DC): 6A @ 125V

• Mounting Hole Diameter: 6 mm

• Mounting Type: Panel mount

• Terminal Type: Solder terminals

• Contact Material: Copper alloy

• Insulation Resistance: ≥100 MΩ

• Operating Temperature: -20°C to 85°C

• Mechanical Life: ≥10,000 cycles

• Electrical Life: ≥5,000 cycles
