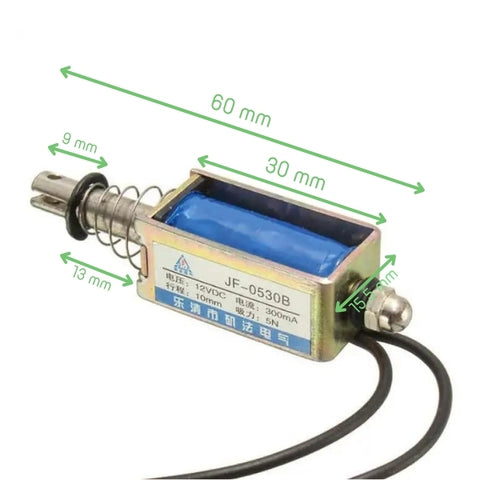

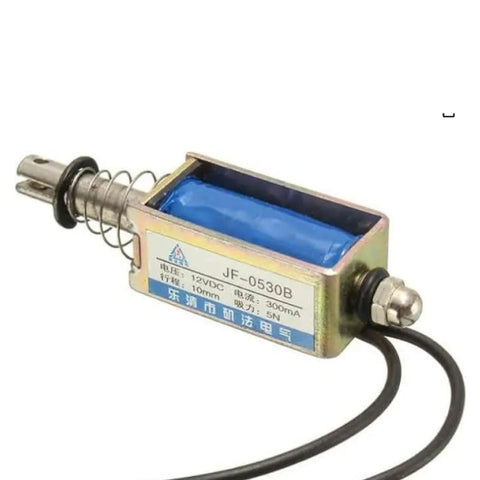

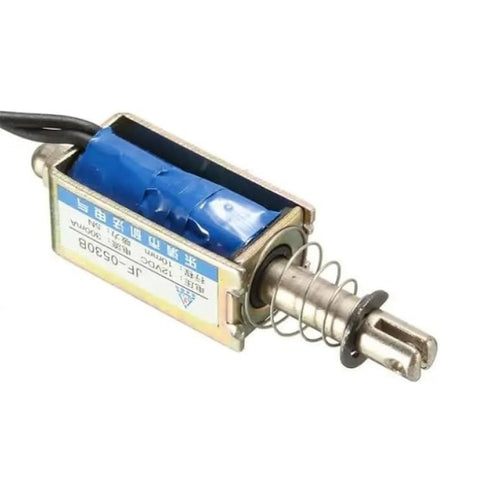

Mini Push Pull Linear Solenoid – 12V, 10mm Stroke

The Mini Push Pull Linear Solenoid is a compact electromagnetic actuator designed for linear motion control in embedded and electromechanical systems. It operates at 12V DC and features a copper coil with a captive plunger and integrated return spring for bidirectional push and pull functionality. Built for consistent performance, it delivers reliable actuation with stable force output and simple bare-wire connectivity. Suitable for automation mechanisms, locking systems, vending machines, and DIY engineering projects.

• Electromagnetic coil actuator with linear motion output

• 12V DC operation for standard embedded systems

• 10mm stroke length for short-range actuation

• Captive plunger design prevents displacement or loss

• Integrated return spring for automatic reset

• Push and pull functionality from both ends

• Compact cylindrical body for tight installations

• Copper coil construction for efficient magnetic field generation

• Stable force output up to 5N

• Bare wire connection for flexible integration

• Low current consumption at 300mA

• Durable metal frame for mechanical stability

• Fast response time for switching applications

• Suitable for continuous intermittent duty cycles
