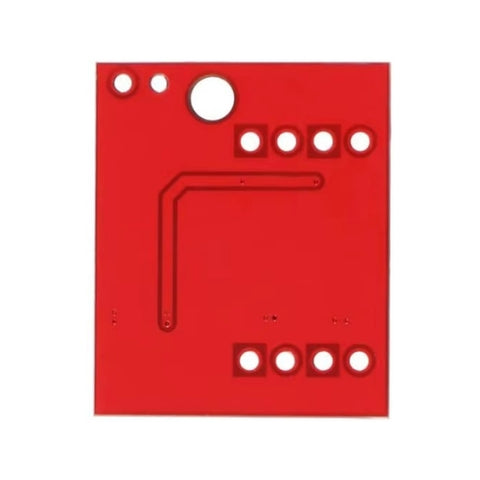

Mini L298N Motor Driver – Dual H-Bridge 2–10V 1.5A

The Mini L298N Motor Driver is a compact dual H-bridge module designed for controlling DC motors and stepper motors in low-voltage applications. It operates with a supply range of 2V to 10V and supports bidirectional motor control with PWM speed regulation. Built with low-resistance MOS switching, it ensures efficient operation with minimal heat generation and no need for additional cooling. The module includes thermal protection and stable signal handling for reliable performance. It is suitable for small robotics, smart cars, and battery-powered embedded systems.

• Dual H-bridge motor driver architecture

• Supports two DC motors or one stepper motor

• Wide operating voltage range 2V to 10V

• Continuous output current up to 1.5A per channel

• Peak current capability up to 2.5A

• Low-resistance MOSFET switching design

• Minimal heat generation without heatsink

• PWM speed control support

• Bidirectional motor rotation control

• Low standby current less than 0.1µA

• Built-in thermal shutdown protection (TSD)

• Stable input signal with anti-floating design

• Compact and lightweight PCB design

• Suitable for battery-powered applications

• Mounting holes for easy integration


• Operating Voltage: 2–10V DC

• Logic Input Voltage: 1.8–7V

• Continuous Current: 1.5A per channel

• Peak Current: 2.5A

• Driver Type: Dual H-Bridge

• Motor Support: 2 DC motors or 1 stepper motor

• Control Method: PWM speed control

• Protection: Thermal shutdown with hysteresis

• Standby Current: <0.1µA

• Switching Type: Low-resistance MOSFET

• Dimensions: 24.7 × 21 × 5 mm

• Mounting Hole Diameter: 2 mm

• Cooling Requirement: No heatsink required

• Application Type: Low voltage motor control
