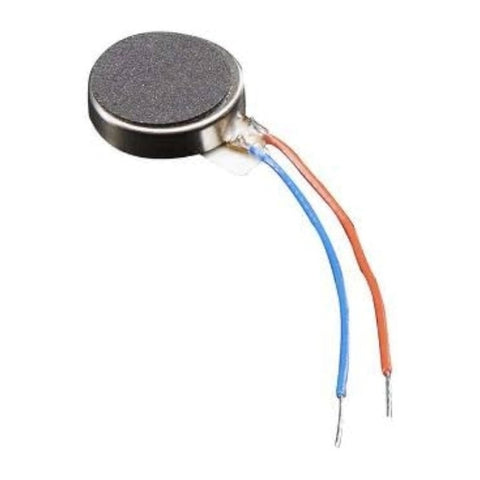

Mini Disc Vibration Motor – 10 mm, 2–5V, 11000 RPM

The Mini Disc Vibration Motor is a compact DC motor designed for haptic feedback and silent alert applications in embedded systems. It operates within a 2–5V range and delivers high-speed vibration up to 11000 RPM at 5V, with proportional current consumption based on voltage. The fully sealed coin-type design ensures durability and easy integration into compact الأجهزة and enclosures. Suitable for direct microcontroller interfacing or transistor-driven control, it provides stable and reliable performance. Ideal for wearable devices, mobile projects, notification systems, and interactive electronics.

• Coin-type vibration motor with sealed enclosure

• Operating voltage range 2V to 5V DC

• High-speed rotation up to 11000 RPM at 5V

• Low power operation suitable for battery devices

• Two-wire interface for simple control

• Compact 10 mm diameter design
• Lightweight construction at 0.9 g

• Compatible with microcontrollers and GPIO control

• Supports resistor-based current limiting

• Suitable for transistor-driven switching circuits

• Fast response vibration feedback

• Maintenance-free sealed structure

• Low noise operation for silent alerts

• Easy embedding in small الأجهزة

• Consistent vibration performance across voltage range


• Motor Type: Coin vibration motor

• Operating Voltage: 2–5V DC

• Rated Voltage: 3V DC

• Current Consumption: 40mA @ 2V

• Current Consumption: 60mA @ 3V

• Current Consumption: 80mA @ 4V

• Current Consumption: 100mA @ 5V

• Speed: 11000 RPM @ 5V

• Diameter: 10 mm

• Thickness: 2.7 mm

• Weight: 0.9 g

• Connection Type: Two-wire (Red positive, Blue negative)

• Construction: Fully sealed корпус

• Control Method: Direct drive or transistor switching

• Recommended Series Resistor: 100–1000 Ω
