Micro USB Female Socket Connector – SMD (2 PCS)

The Micro USB Female Socket Connector is a compact surface-mount interface designed for USB power and data connectivity in embedded electronics and PCB assemblies. It features an SMD mounting structure suitable for automated assembly and compact circuit designs. The connector supports standard Micro USB interfaces commonly used in charging circuits, development boards, and portable electronic devices. Suitable for PCB repair, custom hardware development, and professional SMT applications.

• Standard Micro USB Type-B female connector
• Surface-mount SMD installation

• Compact footprint for dense PCB layouts

• Suitable for charging and data transfer

• Compatible with USB 2.0 applications

• Durable metal shielding structure

• Stable SMT soldering pads

• Designed for compact embedded systems

• Reliable electrical contact performance

• Suitable for PCB repair and replacement

• Compatible with Micro USB cables

• Commonly used in portable electronics

• Connector Type: Micro USB Type-B Female

• Mounting Type: Surface Mount Device SMD

• Pin Configuration: 5 Pins

• Interface Standard: USB 2.0

• Contact Material: Copper Alloy

• Housing Material: Stainless Steel Shield

• Rated Voltage: 30V DC

• Rated Current: 1A Max

• Contact Resistance: 30 mΩ Max

• Insulation Resistance: 100 MΩ Min

• Operating Temperature: -20°C to 85°C

• Connector Orientation: Right Angle

• Color: Silver

• Quantity: 2 PCS

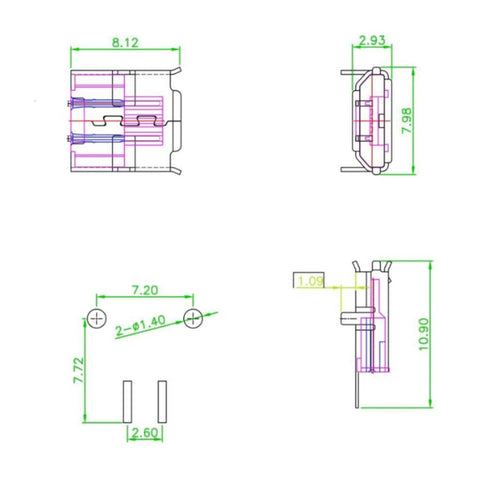

• Micro USB Female Socket Connector 3D Model
