SS-5GL Micro Limit Switch – SPDT Snap Action 5A 125V AC

The SS-5GL Micro Limit Switch is a compact snap-action switch designed for precise position detection in mechanical and electronic systems. It features an SPDT contact configuration with a 5A current rating at 125V AC, ensuring reliable switching performance. Built with a durable internal mechanism, it provides fast response and long operational life under repeated actuation. This switch is suitable for automation systems, 3D printers, robotics, and safety interlock applications.

• SPDT contact configuration for flexible circuit control

• Snap-action mechanism for fast switching response

• Rated current up to 5A at 125V AC

• High mechanical durability for repeated operations

• Compact form factor for tight installations

• Precision actuator for accurate position detection

• Low operating force for sensitive triggering

• Reliable electrical contact stability

• Suitable for low and medium power circuits

• Standard terminal layout for easy wiring

• Durable plastic housing with metal contacts

• Quick response time for automation systems

• Wide compatibility with control circuits and microcontrollers

• Model: SS-5GL

• Switch Type: Micro Limit Switch

• Contact Configuration: SPDT (1NO + 1NC)

• Rated Voltage: 125V AC

• Rated Current: 5A

• Contact Resistance: ≤ 50 mΩ

• Insulation Resistance: ≥ 100 MΩ

• Operating Force: Approx. 0.5–1.5 N

• Electrical Life: ≥ 100,000 cycles

• Mechanical Life: ≥ 1,000,000 cycles

• Operating Temperature: -25°C to 85°C

• Housing Material: High-strength plastic

• Terminal Type: Solder/Quick connect terminals

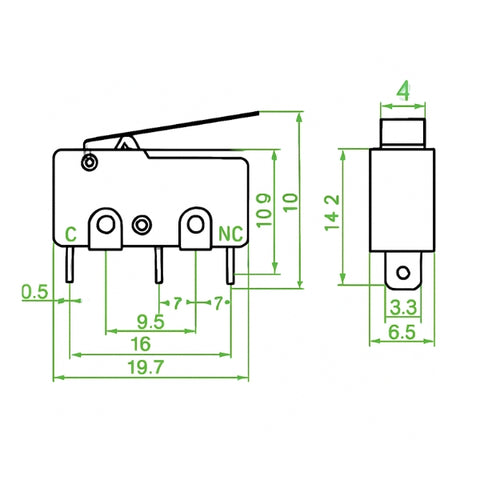

• Dimensions: Approx. 20 × 10 × 6 mm
