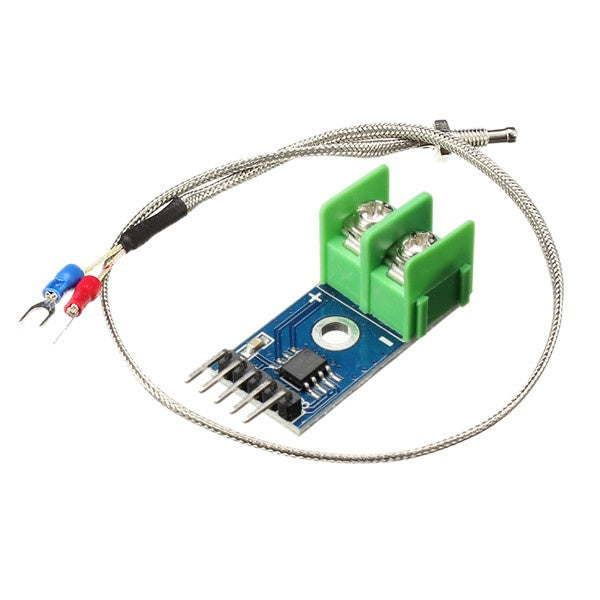

MAX6675 K-Type Thermocouple Temperature Sensor Module – SPI Interface

The MAX6675 is a digital thermocouple interface module designed for accurate high-temperature measurement using K-type thermocouples. It integrates cold-junction compensation and a precision amplifier, providing direct digital temperature output via SPI without requiring analog inputs. The module operates at 3.0–5.5 V and ensures stable performance across a wide temperature range. Its compact form factor and simple pin interface make it suitable for embedded systems and microcontroller-based projects. Ideal for industrial monitoring, laboratory experiments, and temperature control applications.

• MAX6675 thermocouple-to-digital converter

• Supports K-type thermocouples only

• Integrated cold-junction compensation

• SPI digital output interface

• 12-bit temperature resolution

• Wide measurement range up to 1024 °C

• 3.0–5.5 V power supply compatibility

• Stable operation for embedded systems


• Operating Voltage: 3.0–5.5 V DC

• Operating Current: 50 mA

• Thermocouple Type: K-Type only

• Temperature Measurement Range: 0 °C to 1024 °C

• Operating Temperature: −20 °C to 85 °C

• Resolution: 12-bit digital output

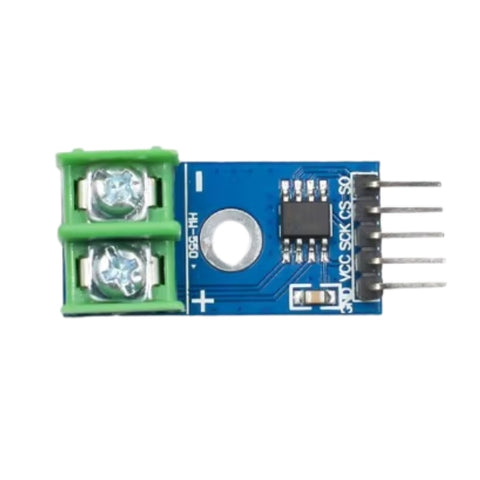

• Interface: SPI (GND, VCC, SCK, CS, SO)

• Cold Junction Compensation: Integrated

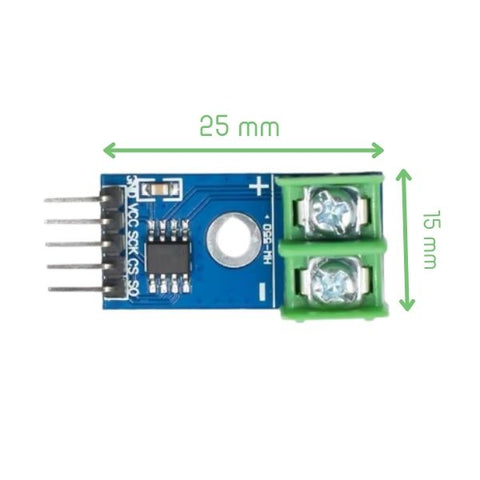

• Dimensions: 25 × 15 mm
