Maker Drive H-Bridge Motor Driver – 2.5–9.5V Dual Channel
Sale
Regular price 23 QAR
Product ID: VT-1101
8 in stock
Description
Features
Specifications
Links
Tutorials
Reviews
Questions & Answers
Description

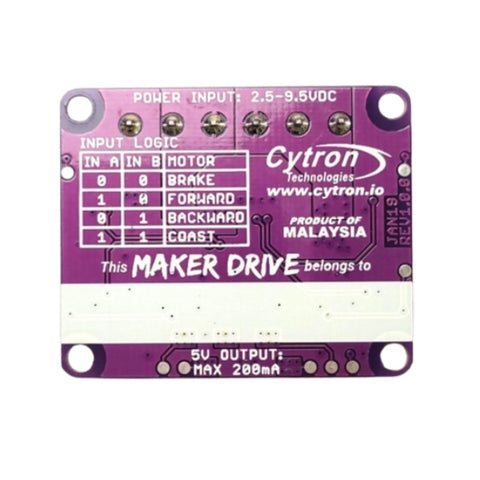

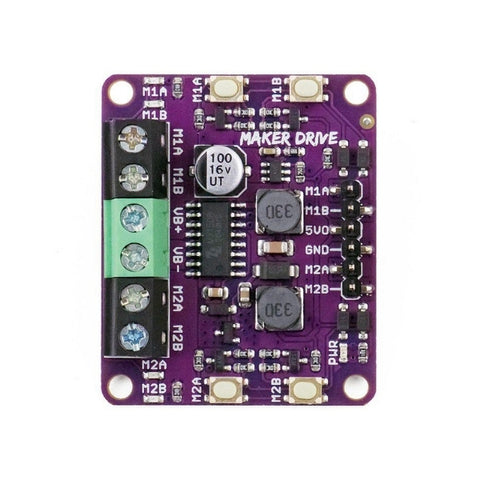

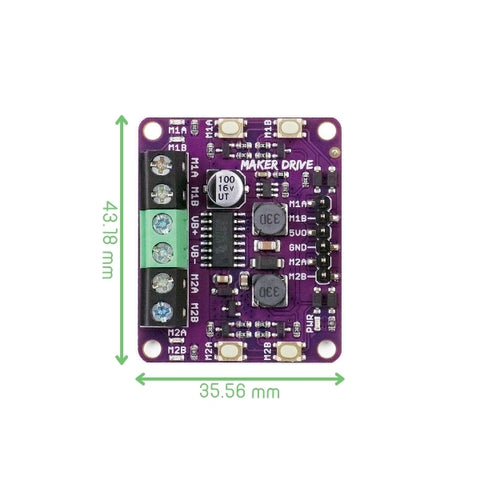

The Maker Drive H-Bridge Motor Driver is a compact dual-channel motor driver designed for beginner-friendly DC and stepper motor control applications. It supports motor voltages from 2.5 V to 9.5 V and provides bi-directional control using standard logic signals. Built with solid-state components, it ensures reliable switching performance and reduced mechanical wear. The integrated reverse polarity protection enhances safety during operation. It is suitable for educational projects, robotics prototypes, and embedded motor control systems.
Features
Dual H-Bridge driver for bi-directional motor control
Wide motor voltage support from 2.5 V to 9.5 V
Continuous output current up to 1 A per channel
Peak current handling up to 1.5 A (<5 seconds)
Integrated reverse polarity protection on power inputs
Onboard test buttons for manual motor control
Four indicator LEDs for status monitoring
PWM speed control up to 20 kHz input frequency
Regenerative braking capability for improved efficiency
Logic level compatibility with 1.8 V, 3.3 V, and 5 V systems
5 V output (200 mA) for powering external controllers
Solid-state switching for fast response and durability
