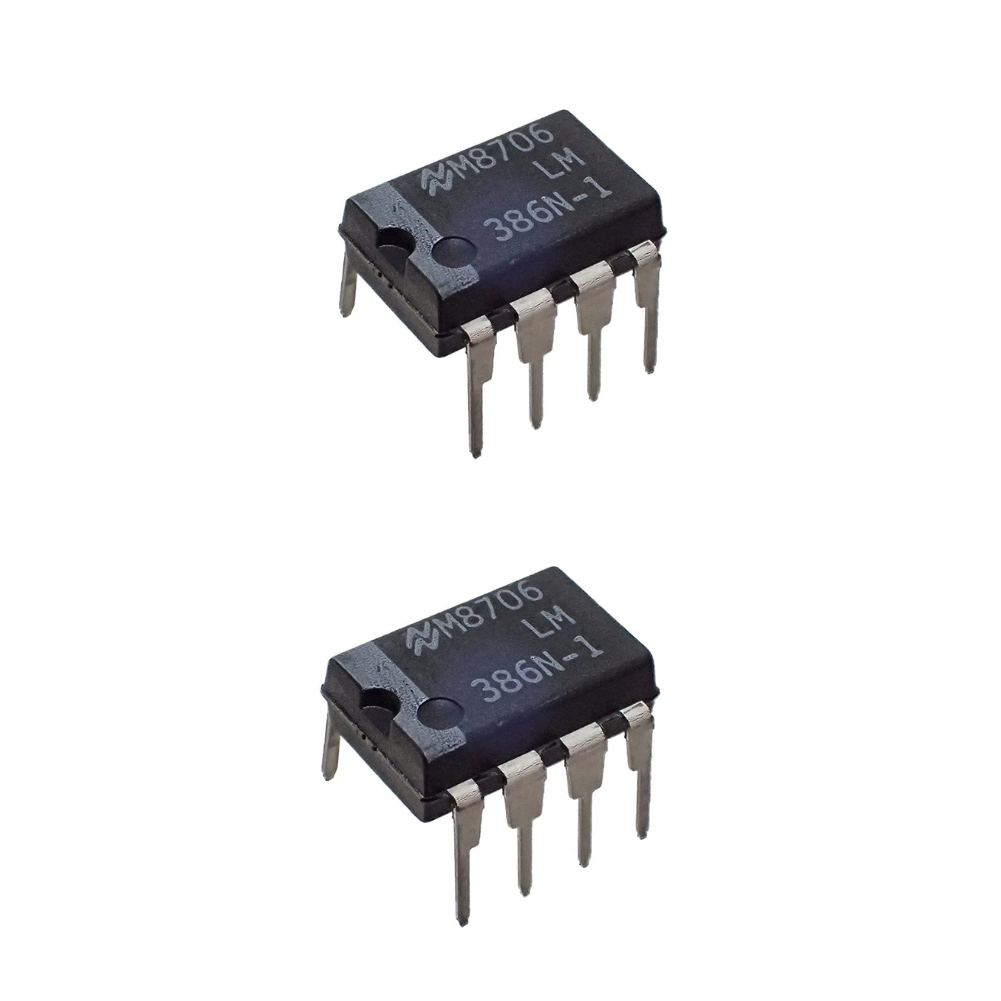

LM386 Low Voltage Audio Power Amplifier IC - 2 Pieces

The LM386 is a low voltage audio power amplifier integrated circuit designed for small speaker and audio output applications.
It is optimized for battery-powered and low-power systems with minimal external component requirements.
The device provides adjustable voltage gain using simple external components.
It is commonly used in portable audio devices, alarms, intercoms, and sound generation circuits.
This set includes two identical ICs suitable for prototyping and replacement use.

• Audio Power Amplifier designed for low voltage operation

• Adjustable Voltage Gain configurable from 20 to 200

• Low Quiescent Current suitable for battery-powered designs

• Wide Supply Voltage Range supporting multiple power sources

• Integrated Biasing Network reducing external component count

• Short-Circuit Protection enhancing device reliability

• Model | LM386

• IC Function | Audio Power Amplifier

• Supply Voltage Range | 4 V to 12 V

• Output Power (Typical) | 325 mW at 6 V

• Voltage Gain (Default) | 20

• Voltage Gain (Maximum) | 200

• Total Harmonic Distortion | 0.2 %

• Operating Temperature Range | 0 °C to 70 °C

• Package Type | 8-pin DIP

• Mounting Type | Through-hole

• Quantity | 2-pieces
