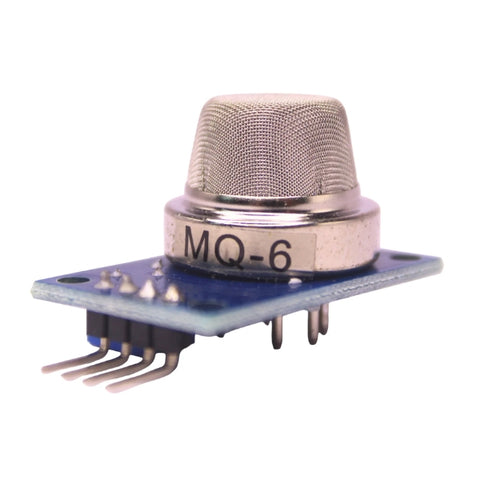

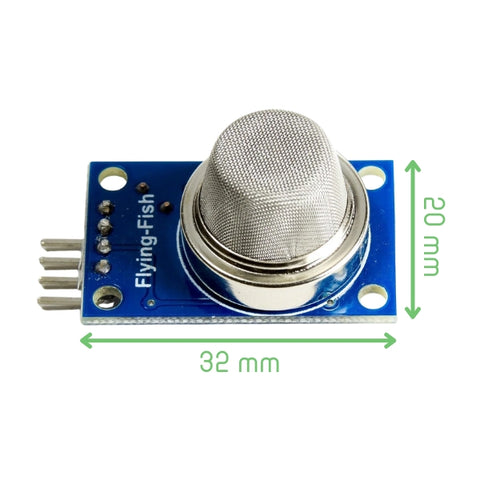

MQ-6 LPG Gas Sensor Module – 300–10000 ppm Detection

The MQ-6 Gas Sensor Module is designed for detecting liquefied petroleum gas LPG, propane, and butane in air. It utilizes a SnO2 sensing element whose conductivity varies with combustible gas concentration, enabling reliable analog output measurement. Operating at 5V DC with an integrated heating element, it provides stable performance across a wide detection range of 300–10000 ppm. The module supports adjustable load resistance and simple signal conditioning circuitry, making it suitable for gas leakage alarms, safety monitoring systems, and embedded gas detection projects.

• SnO2 semiconductor gas sensing element

• Detection range 300–10000 ppm LPG

• High sensitivity to propane and butane

• 5V DC operating voltage

• Integrated heating element

• Adjustable load resistance RL

• Analog output signal proportional to concentration

• Stable performance under 20°C ±2°C conditions

• Low power consumption ≤900 mW

• Long service life design

• Simple drive and interface circuit

• Suitable for gas leakage alarm systems


• Operating Voltage: 5V DC

• Heating Voltage: 5.0V ±0.2V AC or DC

• Heating Resistance: 31Ω ±3Ω at room temperature

• Heating Power Consumption: ≤900mW

• Detection Gas Type: LPG, Propane, Butane, Iso-butane

• Detection Range: 300–10000ppm (LPG)

• Load Resistance: Adjustable

• Sensitivity Ratio: ≤0.6 (R2000ppm/R1000ppm LPG)

• Standard Test Voltage Vc: 5.0V ±0.1V

• Preheat Time: ≥48 hours

• Operating Temperature: 20°C ±2°C

• Operating Humidity: 65% ±5% RH
