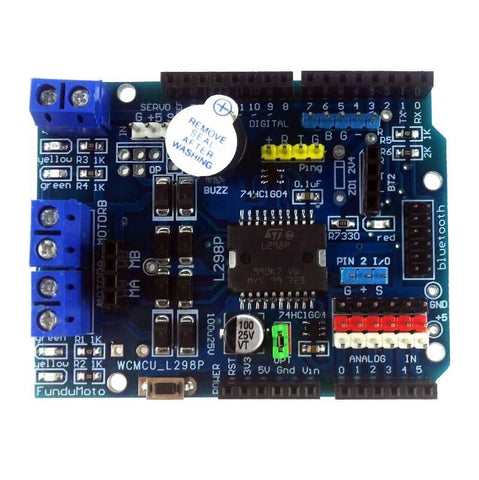

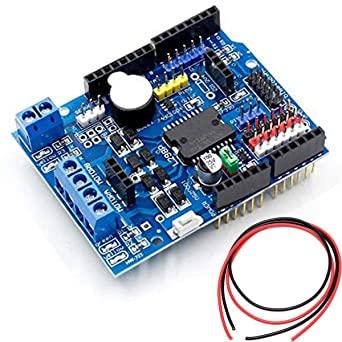

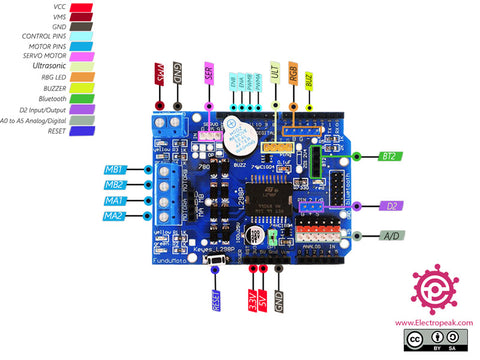

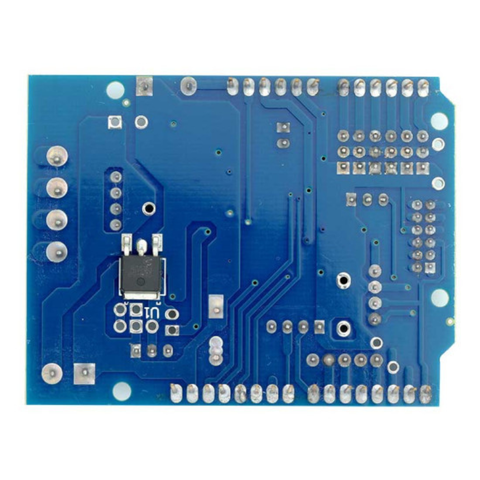

L298P PWM Motor Drive Shield Expansion Board

The L298P PWM motor driver shield expansion board is designed to control DC motors and stepper motors in Arduino-based applications.
It integrates the L298P dual full-bridge motor driver, enabling independent bidirectional control of two DC motors or one stepper motor.
The shield supports PWM speed control for precise motor operation and smooth performance.
It stacks directly onto compatible Arduino boards for quick integration.
Typical applications include robotics, automation systems, and educational motor control projects.

• Dual Full-Bridge Motor Driver supporting two DC motors

• PWM Speed Control for adjustable motor performance

• Bidirectional Rotation Control enabling forward and reverse operation

• Current Sensing Capability for monitoring motor load

• Arduino-Compatible Shield Design for direct stacking

• Thermal and Overcurrent Protection enhancing operational safety

• Model | L298P Motor Driver Shield

• Driver IC | L298P Dual H-Bridge

• Motor Channels | 2 DC motors or 1 stepper motor

• Logic Voltage | 5 V

• Motor Supply Voltage | 7 V to 35 V

• Maximum Current per Channel | 2 A

• Control Method | PWM and digital direction control

• Current Sensing | Integrated sense outputs

• Mounting Type | Arduino shield stackable

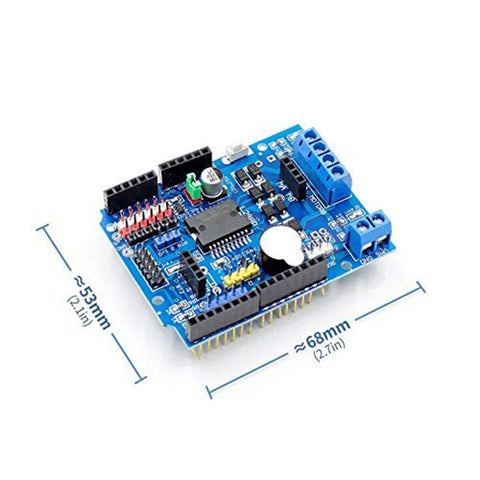

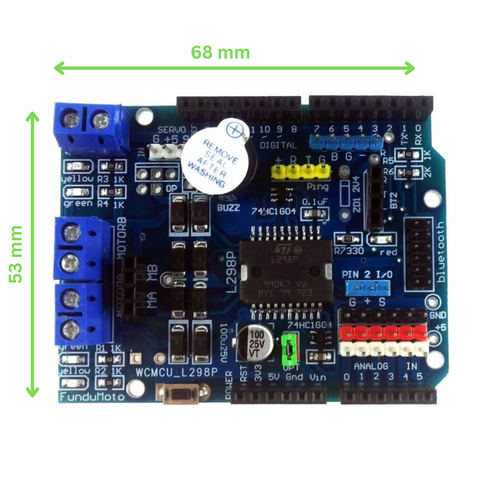

• Dimensions | 68 mm × 53 mm

• L298P Datasheet

• Complete tutorial with Arduino code example
