L293D Motor Driver Shield – Dual H-Bridge for Arduino

The L293D Motor Driver Shield is an Arduino-compatible expansion board designed for controlling DC and stepper motors in embedded and robotics applications. It integrates the L293D dual H-Bridge IC, enabling independent control of two DC motors or one stepper motor with bidirectional operation. The shield supports PWM-based speed control and operates with motor voltages up to 36 V. Built for reliable performance, it includes overcurrent and thermal protection features. It is ideal for robotics, automation systems, and Arduino-based motor control projects.

• L293D dual H-Bridge driver for motor control


• Two DC motor channels or one stepper motor support


• PWM speed control via Arduino PWM pins


• Bidirectional rotation control for each motor


• Operating motor voltage up to 36 V


• Continuous current up to 600 mA per channel


• Peak current up to 1.2 A per channel


• Integrated overcurrent and thermal protection


• Full compatibility with Arduino standard headers


• Stackable shield design for easy integration


• Direct interface with Arduino digital and PWM pins


• Compact PCB layout for embedded applications


• Suitable for robotics and automation projects


• Simple plug-and-play installation on Arduino boards

• Model: L293D Motor Driver Shield


• Driver IC: L293D Dual H-Bridge


• Motor Channels: 2 DC motors or 1 stepper motor


• Logic Operating Voltage: 5V DC


• Motor Operating Voltage: 4.5–36V DC


• Continuous Output Current: 600mA per channel


• Peak Output Current: 1.2A per channel


• PWM Frequency: Up to 20 kHz


• Control Interface: Arduino digital and PWM pins


• Protection Features: Overcurrent and thermal protection


• Mounting Type: Arduino stackable shield

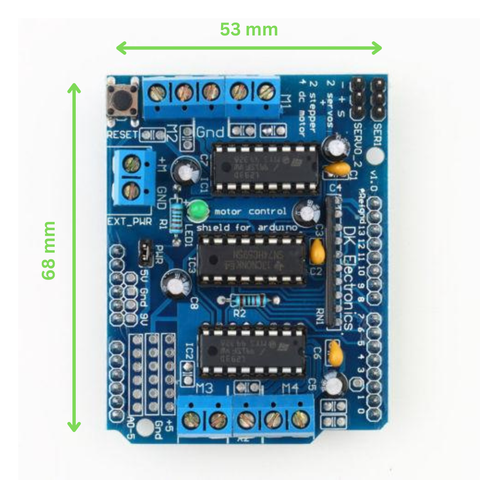

• Board Dimensions: 68 × 53 mm
