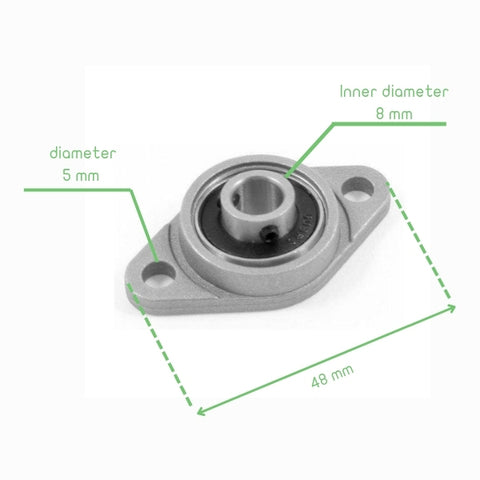

KFL08 Pillow Block Flange Bearing – 8mm Bore Zinc Alloy Housing

The KFL08 pillow block flange bearing is an end-support mounted bearing designed for 8 mm shafts in CNC machines and motion systems. It features a zinc-aluminum alloy housing with an integrated 608 deep groove ball bearing for stable rotation and load support. The unit includes dual grub screws for secure shaft locking and reliable alignment during operation. Built for consistent performance, it ensures smooth rotation and reduced vibration in mechanical assemblies. Ideal for CNC routers, 3D printers, and linear motion applications.

• 8 mm bore diameter for standard shafts

• Zinc alloy housing for structural durability

• Integrated 608 deep groove ball bearing

• Dual grub screws for secure shaft locking

• Two-bolt flange mounting configuration

• Wide inner ring bearing design
• Low friction rotational performance

• Self-aligning capability during operation

• Supports leadscrews and linear shafts

• Corrosion-resistant metal housing

• Stable axial and radial load handling

• Easy installation and removal

• Compact flange-mounted structure

• Suitable for continuous motion systems

• Bore Diameter: 8 mm

• Bearing Type: 608 Deep Groove Ball Bearing

• Housing Material: Zinc-Aluminum Alloy

• Mount Type: Two-Bolt Flange Mount

• Locking Mechanism: Dual Grub Screws

• Inner Ring Type: Wide Inner Ring

• Outer Diameter (Bearing): 22 mm

• Width (Bearing): 7 mm

• Housing Length: 48 mm

• Housing Width: 27 mm

• Mounting Hole Distance: 36 mm

• Mounting Hole Diameter: 5 mm

• Operating Temperature: -20°C to 120°C

• Application Type: Shaft Support and Rotation
