Analog Joystick Module – Dual Axis 10kΩ with Push Button

The analog joystick module is an input device designed for directional control in embedded systems and interactive applications. It features two potentiometers of approximately 10kΩ for X and Y axis movement, providing variable analog voltage output based on position. The module also includes an integrated push-button switch activated by pressing the joystick. Operating at 5V, it outputs a centered voltage of around 2.5V, which varies between 0V and 5V during movement. Suitable for robotics, gaming interfaces, and motion control systems.

• Dual-axis analog joystick for X and Y control

• Two ~10kΩ potentiometers for position sensing

• Analog voltage output proportional to movement

• Center position output approximately 2.5V

• Output range from 0V to 5V

• Integrated push-button switch for selection input

• 5V operating voltage compatible with microcontrollers

• Smooth and responsive directional control

• Compact module design for easy integration

• Standard pin interface for simple connection

• Stable analog signal output for accurate readings

• Suitable for Arduino and embedded systems

• Product Type: Analog joystick module

• Control Type: Dual-axis potentiometer + push button

• Potentiometer Resistance: ~10kΩ per axis

• Operating Voltage: 5V DC

• Output Type: Analog (X, Y), Digital (switch)

• Center Voltage: ~2.5V

• Output Voltage Range: 0–5V

• Number of Axes: 2 (X and Y)

• Switch Type: Integrated push button

• Connection Interface: Pin header

• Mounting Type: PCB module

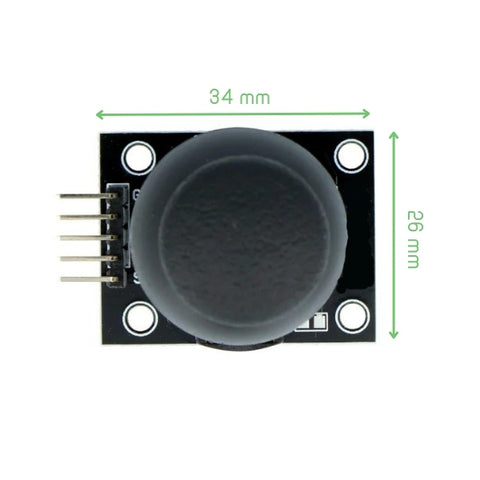

• Dimensions: Approx. 40mm × 26mm × 32mm

• Operating Temperature: −10°C to 60°C

• Compatibility: Arduino, microcontrollers
