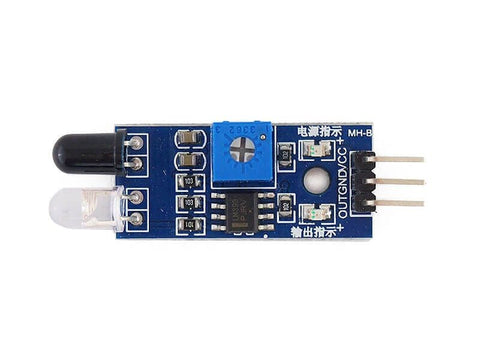

IR Obstacle Avoidance Sensor 2–30 cm Adjustable

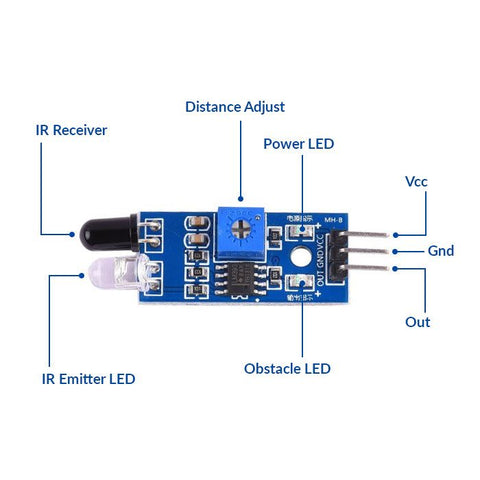

The IR Obstacle Avoidance Sensor 2–30 cm Adjustable is a compact module designed to detect objects using infrared light. It contains paired infrared transmitter and receiver components, where the LED emits infrared signals and the reflected light from obstacles is sensed by the receiver. The sensor outputs a low-level digital signal when an obstacle is detected, and an onboard LED indicator provides visual confirmation. The detection distance is adjustable from 2 to 30 cm using a potentiometer, with a detection angle of 35°. Operating at DC 3–5 V, the module is compatible with Arduino, Raspberry Pi, and other microcontrollers for robotics, motion detection, and automated obstacle avoidance applications.

• Detection Range | Adjustable from 2–30 cm

• Sensor Type | Infrared transmitter and receiver pair

• Output | Digital low-level signal when obstacle is detected

• Indicator | LED lights up upon obstacle detection

• Detection Angle | 35° for targeted sensing

• Operating Voltage | DC 3–5 V

• Calibration | Onboard potentiometer for distance adjustment

• Compatibility | Supports Arduino, Raspberry Pi, and other microcontrollers

• Operating Voltage | DC 3–5 V

• Supply Current | 20 mA typical

• Output Type | Digital low-level signal

• Indicator | LED for obstacle detection

• Module Dimensions | 35 × 12 × 12 mm (L × W × H)

• Weight | 8 g

• Calibration | Onboard potentiometer for distance adjustment

• Detection Range | 2–30 cm adjustable

• Detection Angle | 35°

• Response Time | <50 ms

• Operating Temperature | 0 °C to 50 °C

• Storage Temperature | -10 °C to 60 °C
