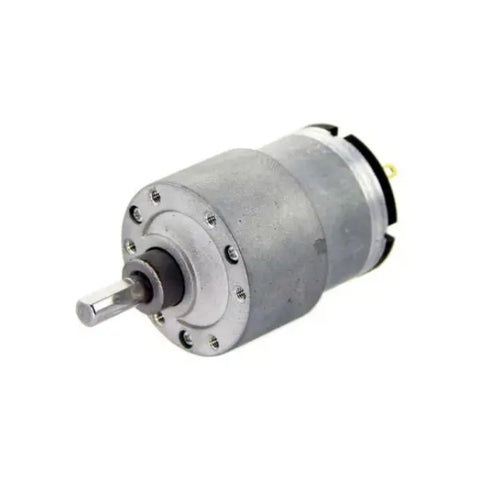

12V JGB37-520 DC Geared Motor – 960RPM High Speed

The JGB37-520 DC Geared Motor is a compact brushed motor designed for applications requiring higher rotational speed with moderate torque output. It features a durable metal gearbox with a 6.25:1 reduction ratio, delivering up to 960 RPM at 12V. The motor includes an off-centered D-type shaft and multiple M3 mounting holes for secure and flexible installation. Built for stable and continuous operation, it supports bidirectional rotation. Suitable for robotics, automation systems, and high-speed mechanical applications.

• Metal gearbox construction for extended lifespan

• 6.25:1 gear reduction ratio

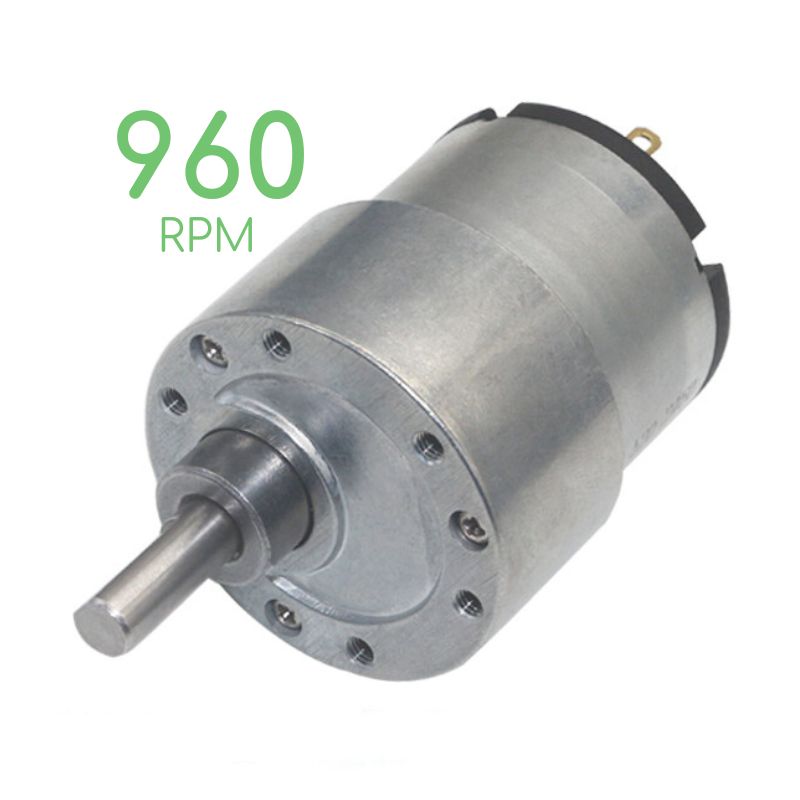

• 960 RPM no-load speed at 12V

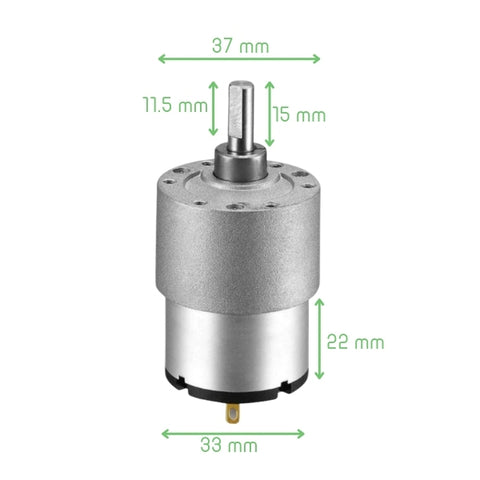

• Compact 37 mm motor form factor

• Moderate torque output up to 0.6 kg·cm

• D-type shaft for secure coupling

• Off-centered shaft configuration

• Supports forward and reverse rotation

• Low no-load current consumption

• Multiple M3 mounting holes

• Stable operation under continuous load

• Suitable for high-speed robotic applications

• Rated Voltage: 12V DC

• No Load Speed: 960 RPM

• No Load Current: 0.1A

• Rated Speed: 672 RPM

• Rated Current: 0.20A

• Rated Torque: 0.17 kg·cm

• Rated Power: 3.6W

• Stall Torque: 0.6 kg·cm

• Stall Current: 1.2A

• Gear Ratio: 6.25:1

• Gearbox Length: 19mm

• Starting Voltage: 1.5V

• Shaft Type: D-Type

• Mounting Holes: M3
