Voltaat DEVEB_ESP Heltec ESP32 LoRa 32 V4 Development Board with OLED Display

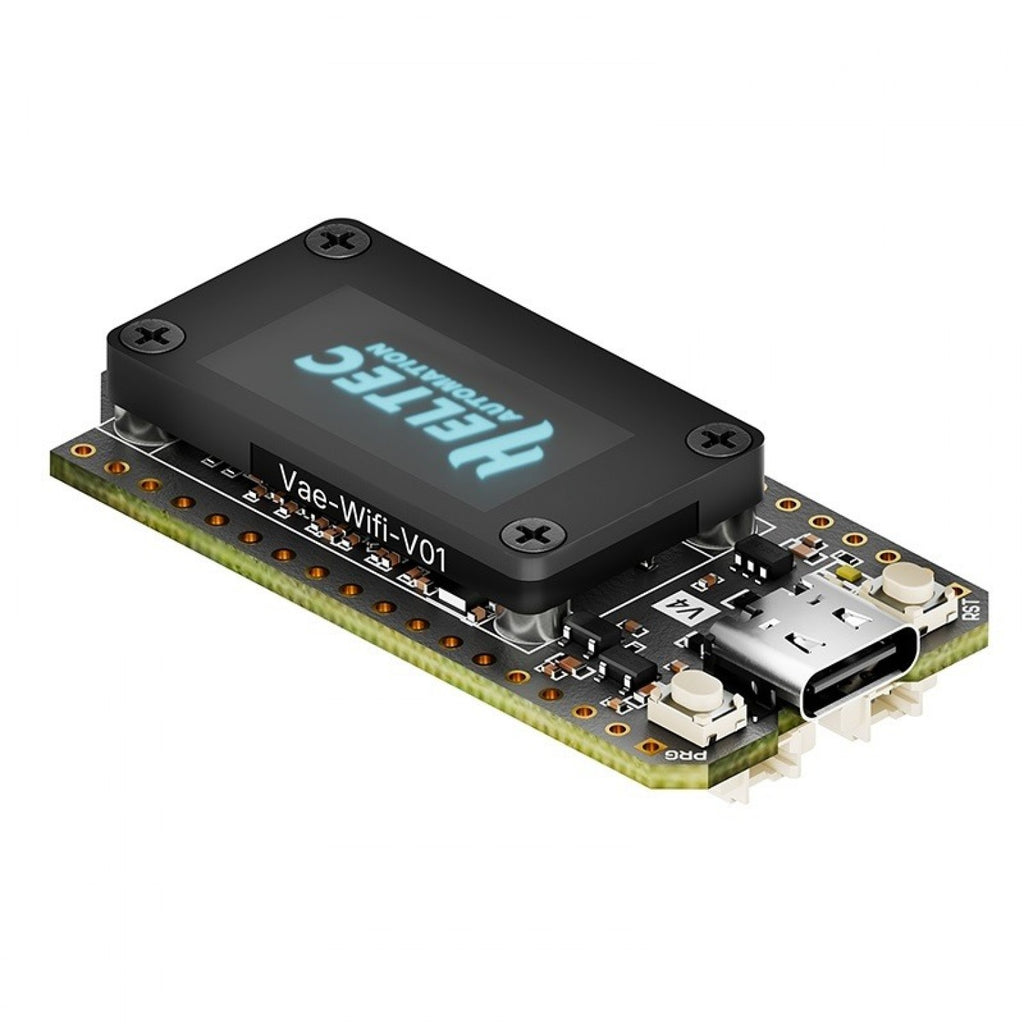

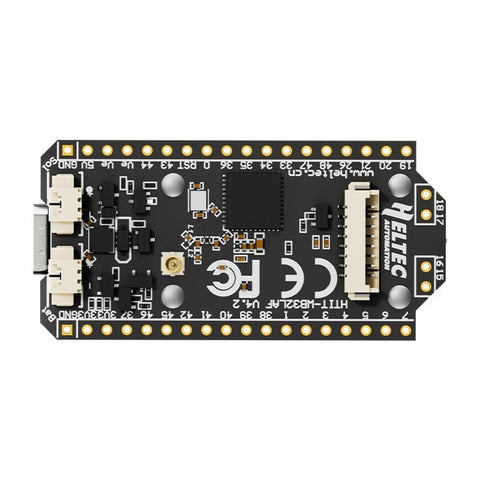

Heltec ESP32 LoRa 32 V4 Development Board with OLED Display

Sale
Regular price 159 QAR

Product ID: VT-4602

We do not currently have an estimate for arrival date. Contact us for urgent custom order!

Description
Specifications
Reviews
Questions & Answers

Description

A development board from Heltec based on a ESP32-S3 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. Things can be shown on the built-in OLED display. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth/LoRa). Finally, the board has a battery connector where a Li-Po/Li-ion battery (not included) can be connected, which can also be charged via the board.

Compared to the V3, this version features upgrades like solar charging and increased storage capacity.

Note: Not all countries allow LoRa signals to be transmitted on 868MHz with a power of 28dBm (630mW, maximum of this module). In the Netherlands, for example, this maximum is 20dBm (100mW) around 868MHz (with the exception of between 869.40 - 869.65MHz, which may be a maximum of 27dBm (500mW)). Therefore, set the maximum transmission power in such a way that it complies with local laws and regulations.

See the following page for more information: Wiki

See the following page for more information: Manufacturer page

Specifications

General

Brand: Heltec
Model: HTIT-WB32LAF
Revision: V4.3
Operating temperature: -20°C to 70°C
Features: Display, Battery charger, Microcontroller (MCU), Programmable button(s)

Physical Specifications

Color: Black
Weight: 11 g
Dimensions: 52 mm × 25 mm
Form factor: Module

Electrical Specifications

Supply voltage: 4.7V – 6V
IO voltage: 3.3V
Max source current (IO): 40 mA
Max sink current (IO): 28 mA

Microcontroller (MCU)

Manufacturer: Espressif
Chip: ESP32-S3
Clock speed: 240 MHz
Cores: 2

Memory

SRAM: 512 KB
PSRAM: 2 MB
Flash: 16 MB
EEPROM: Emulated

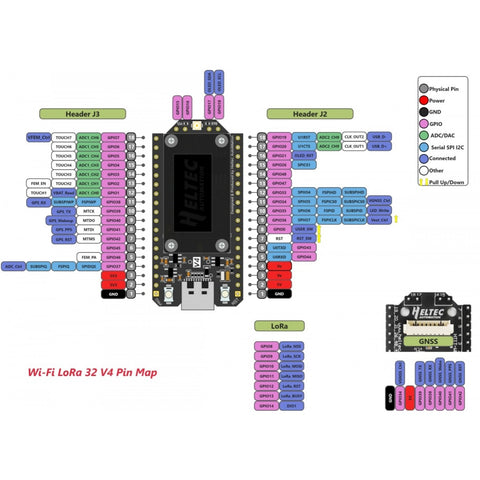

Communication Interfaces

Interfaces: ADC, I2C, I2S, PWM, SPI, GPIO, UART, USB CDC, Native USB
GPIO pins: 0–7, 15–21, 26, 33–48
Total IO pins: 32
PWM channels: 20
ADC channels: 13
DAC channels: 0
UART: 3
I2C: 2
SPI: 2
USB-to-serial: Integrated

Wireless Connectivity

Interfaces: LoRa, Wi-Fi, Bluetooth
Wi-Fi: ESP32-S3, 2.4 GHz
Bluetooth: Version 5.0 (LE)
LoRa: SX1262, 868 MHz

Display

Type: OLED
Driver: SSD1315
Size: 0.96 inch
Resolution: 128 × 64
Shape: Rectangular
Color: Blue

Battery & Charging

Charger IC: CN3165
Battery type: Li-Po, Li-ion
Max charging voltage: 4.2V
Max charging current: 540 mA
Adjustable current: No
Protection circuit: No

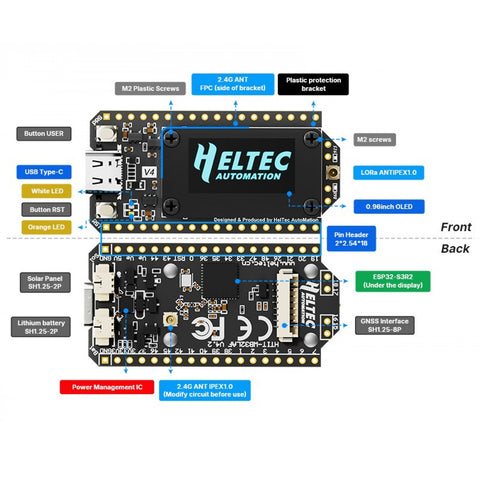

Connectors

Power: USB-C (female), 2.54 mm pins
IO: USB-C, Molex Picoblade (male), 2.54 mm pins
Battery: Molex Picoblade (male)
Solar: Molex Picoblade (male)
Wi-Fi/Bluetooth antenna: Built-in, optional uFL (modification required)
LoRa antenna: uFL (IPEX MHF1)

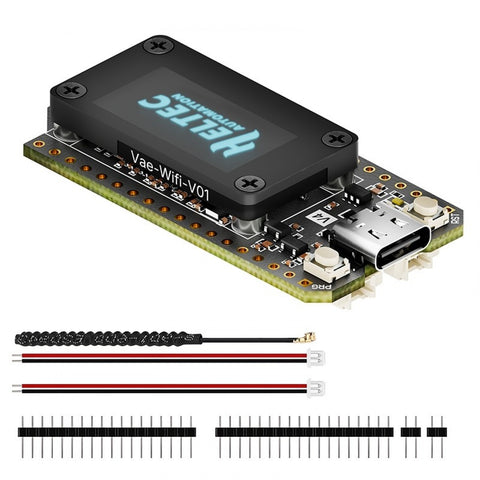

Package Contents

1× Wi-Fi LoRa 32 V4 board
2× 18-pin male headers
2× 2-pin male headers
1× IPEX LoRa antenna
2× Molex Picoblade compatible cables
