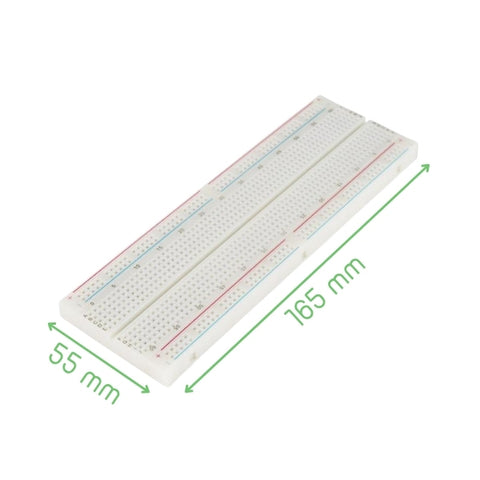

Full-Size Solderless Breadboard – 830 Tie Points

The Full-Size Solderless Breadboard is designed for rapid prototyping, circuit testing, and electronics development without soldering. It features 830 tie points with dual split power rails and a standard 2.54 mm pitch layout compatible with DIP ICs, sensors, and development boards. The interlocking design allows multiple boards to be connected for larger projects, while the self-adhesive backing provides secure mounting during operation. Suitable for educational labs, embedded systems development, and electronic prototyping applications.

• 830 total tie points for circuit prototyping

• Standard 2.54 mm pin spacing

• Dual split power rails design

• Compatible with DIP IC packages

• 10 terminal columns layout

• 63 connection rows configuration

• Self-adhesive backing for secure mounting

• Interlocking side tabs for board expansion

• Supports 20–29 AWG jumper wires

• Solderless reusable construction

• Nickel-plated contact clips

• ABS plastic housing material

• Suitable for Arduino and Raspberry Pi projects

• Ideal for testing and educational applications

• Compact full-size breadboard format

• Total Tie Points: 830

• Terminal Strips: 630 tie points

• Power Rails: 200 tie points

• Terminal Columns: 10 columns

• Terminal Rows: 63 rows

• Pin Pitch: 2.54 mm

• Center Gap: 7.62 mm

• Supported Wire Size: 20–29 AWG

• Power Rail Type: Split dual rails

• Mounting Type: Self-adhesive backing

• Board Type: Solderless breadboard

• Material: ABS plastic housing

• Contact Material: Nickel-plated spring clips

• Board Dimensions: 165 × 55 × 9 mm

• Compatibility: DIP ICs, Arduino, Raspberry Pi, sensors and modules
