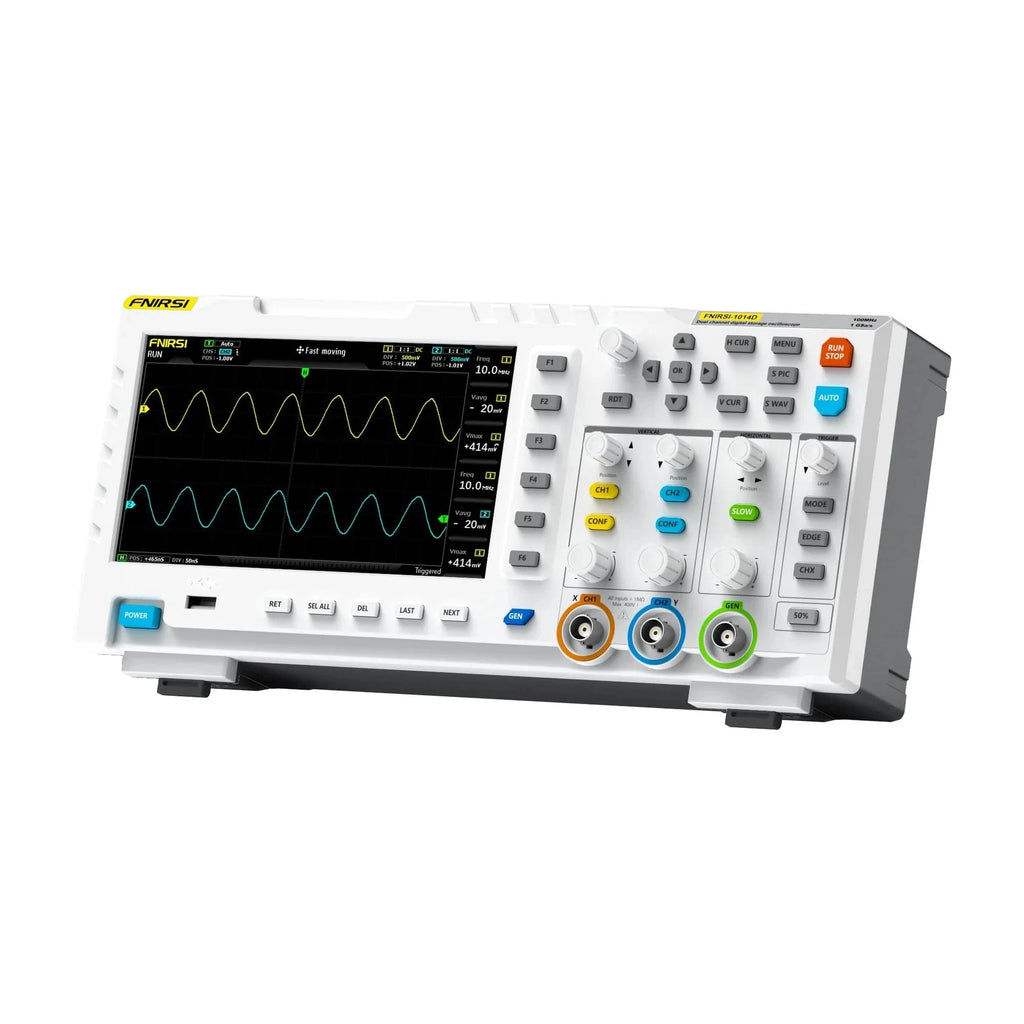

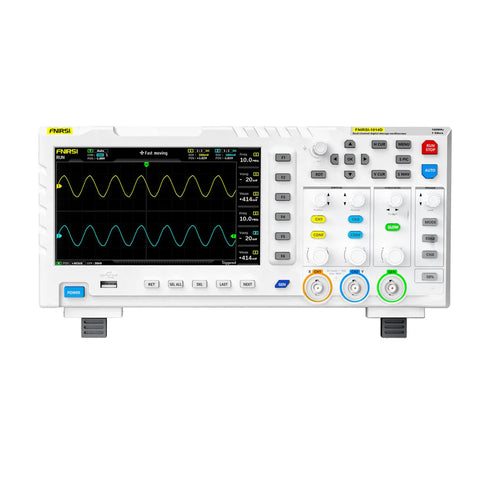

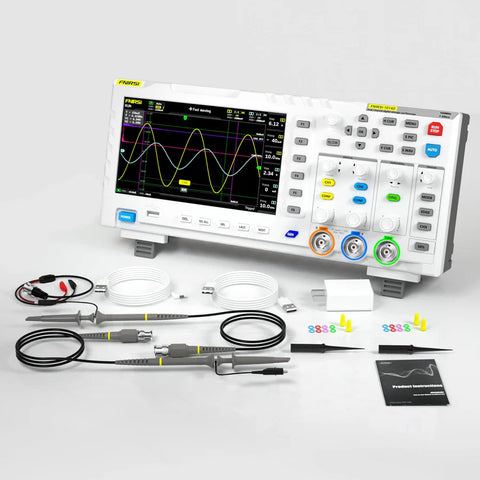

FNIRSI 1014D Digital Oscilloscope and Signal Generator

The FNIRSI 1014D is a portable 2-in-1 test instrument that combines a dual-channel digital oscilloscope with a built-in DDS signal generator. Featuring a 100MHz bandwidth and a real-time sampling rate of 1GSa/s, it provides accurate waveform analysis for electronics development, troubleshooting, and educational applications. The integrated signal generator supports multiple waveform outputs, while the 7-inch TFT display delivers clear visualization of signals and measurements. With onboard storage, advanced triggering functions, and input protection up to 400V when used with a 10× probe, the FNIRSI 1014D is a versatile tool for laboratory, workshop, and field use.

• Dual-channel oscilloscope architecture
• 100MHz analog bandwidth per channel
• 1GSa/s real-time sampling rate
• Integrated DDS signal generator
• Supports 14 standard waveform types
• Custom waveform generation capability
• Large 7-inch TFT display
• One-key automatic waveform setup

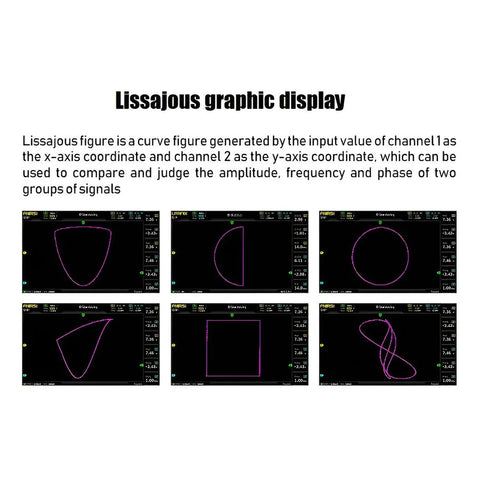

• Automatic measurement functions

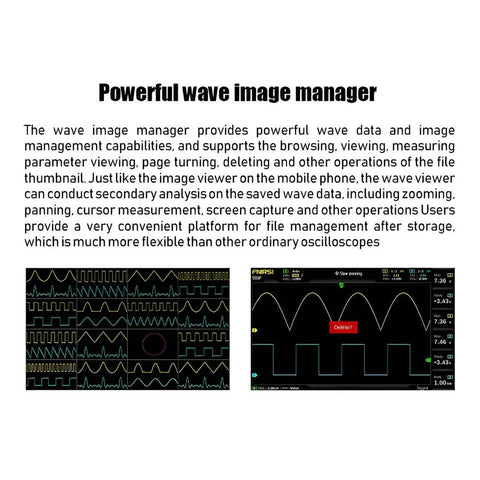

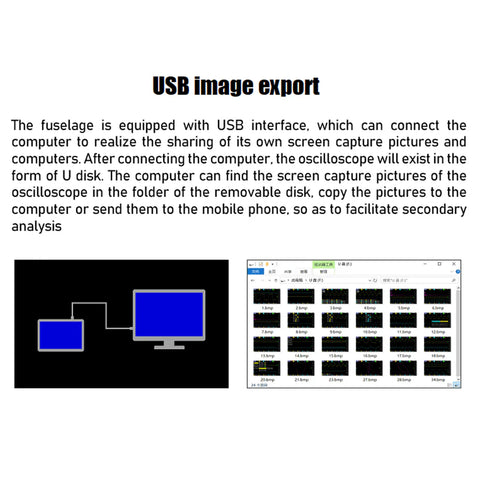

• Screenshot and waveform storage
• 1GB onboard storage memory
• Multiple trigger operation modes
• Edge trigger support
• Input protection up to 400V with 10× probe
• Portable all-in-one test solution

• Channels: 2

• Analog Bandwidth: 100 MHz

• Sampling Rate: 1 GSa/s

• Display: 7" TFT LCD (800 × 480)

• Memory Depth: 240 Kbit

• Storage Capacity: 1 GB (up to 1,000 files)

• Waveform Generator: 14 standard waveforms + custom chopping

• Vertical Sensitivity: 50 mV/div to 500 V/div

• Time Base Range: 50 s/div to 10 ns/div

• Trigger Modes: Auto, Normal, Single

• Input Impedance: 1 MΩ

• Max Input Voltage: 40 V (1x), 400 V (10x)

• Power Supply: 5 V (2–4 A) via USB

• Dimensions: Approx. 310 × 145 × 70 mm

• Weight: Approx. 1.5 kg

• FNIRSI 1014D Digital Oscilloscope and Signal Generator User Manual

• FNIRSI 1014D Oscilloscope with Built-in Function Generator⭐Complete Review! Should you buy it?
