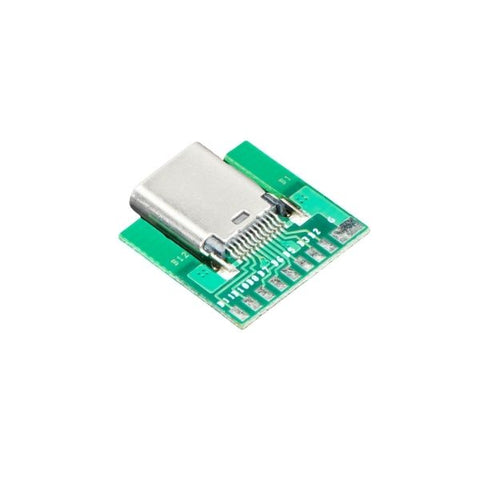

The Female Type-C USB Breakout Board is designed for prototyping, custom USB-C cable assemblies, and embedded hardware integration. It features a dual-row USB Type-C female connector with all pins broken out to clearly labeled solder pads for direct access to USB 2.0 and USB 3.1 signals. The board provides a compact inline layout suitable for custom wiring and signal routing applications. It does not include USB-C configuration resistors or power negotiation circuitry, allowing full flexibility for advanced hardware designs and custom implementations. Ideal for USB-C development, prototyping, repair, and interface testing applications.

• USB Type-C female connector breakout board

• Dual-row USB-C connector with full pin access

• All connector pins routed to solder pads

• Inline breakout layout for custom cable assemblies

• Supports USB 2.0 and USB 3.1 signal lines

• Compact PCB design for embedded integration

• Suitable for prototyping and hardware development

• Clearly labeled pinout connections

• Compatible with custom USB-C interface projects

• Direct access to power and data lines

• Through-hole solder pad connections

• Lightweight and compact construction

• Suitable for repair and diagnostic applications

• Enables custom USB-C wiring configurations

• No onboard configuration resistors included

• Connector Type: USB Type-C Female

• Board Type: USB-C Breakout Board

• USB Standard Support: USB 2.0 / USB 3.1

• Pin Configuration: Full USB Type-C Pin Breakout

• Connector Orientation: Dual-Row Reversible Connector

• Mounting Style: Inline PCB Layout

• Pad Type: Solder Pads

• Configuration Resistors: Not Included

• Power Delivery Circuitry: Not Included

• Signal Access: Power, Data, CC, and Auxiliary Pins

• PCB Material: FR4

• Board Color: Black

• Application Type: Prototyping and Custom USB-C Wiring

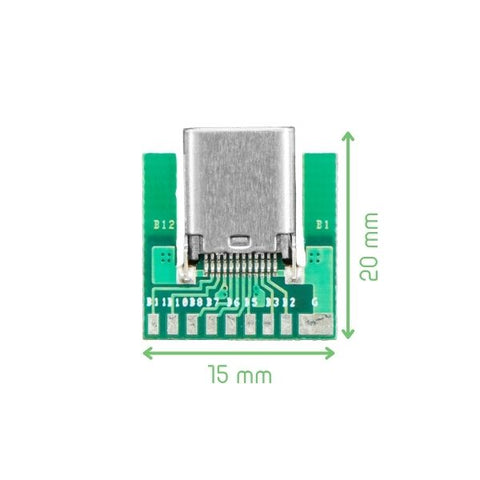

• Dimensions: Approx. 20mm × 15mm

• Weight: Approx. 2g

• USB_type_C_24p_female 3D Model
