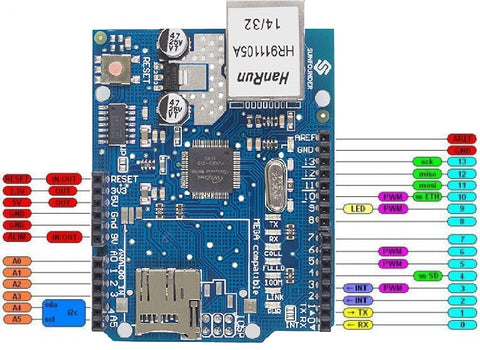

Ethernet and Micro-SD Shield for Arduino

The Ethernet and Micro-SD shield for Arduino enables wired network connectivity and data storage for Arduino-based projects.
It integrates an Ethernet controller for TCP/IP communication and a Micro-SD card slot for local data logging.
The shield stacks directly onto compatible Arduino boards using standard headers.
It supports network communication for IoT, web servers, and remote monitoring applications.
The integrated Micro-SD interface allows storage of logs, configuration files, and web content.

• Wired Ethernet Connectivity supporting TCP/IP communication

• Micro-SD Card Slot for data logging and file storage

• SPI Communication Interface for reliable data transfer

• Arduino-Compatible Shield Design for direct stacking

• Status Indicator LEDs for link and activity monitoring

• Compact PCB Layout suitable for embedded networking projects

• Product Type | Ethernet and Storage Expansion Shield

• Network Interface | RJ45 Ethernet port

• Communication Protocol | TCP/IP via SPI

• Data Storage | Micro-SD card (FAT format supported)

• Logic Voltage | 5 V (Arduino compatible)

• Control Interface | SPI bus

• Mounting Type | Arduino shield stackable

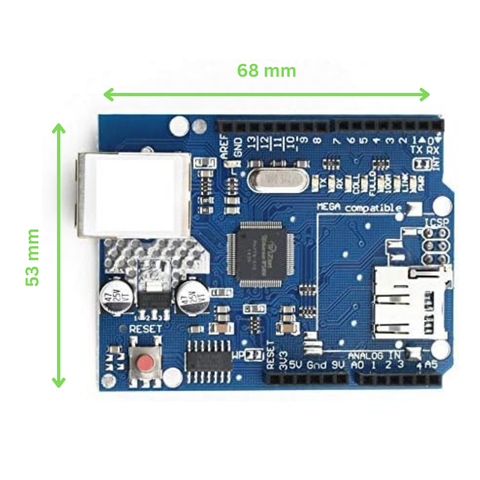

• Dimensions | 68 mm × 53 mm

• 3D Model
• W5100 Datasheet
• Arduino Ethernet Library

• Arduino Ethernet Shield Webserver
