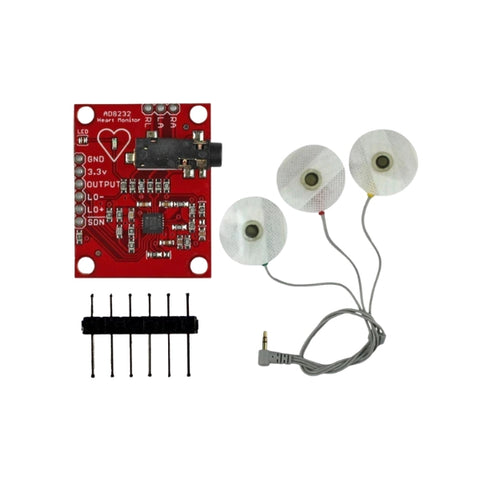

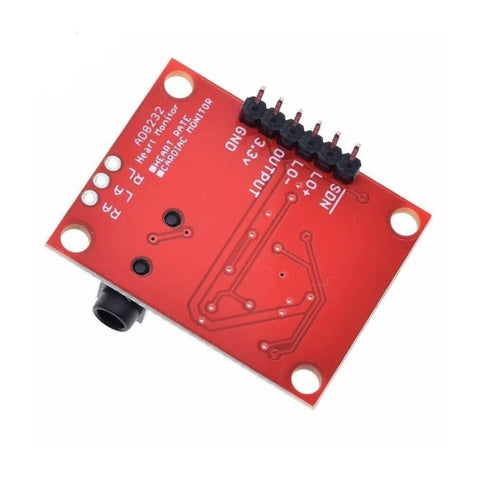

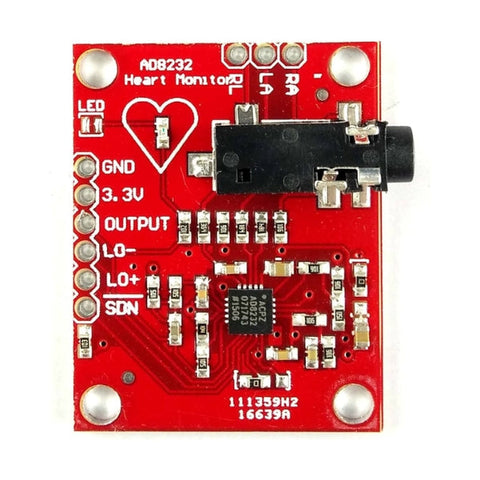

AD8232 ECG Heart Rate Monitor Module – 3.3V Analog Output

The AD8232 ECG Heart Rate Monitor Module is a compact analog front-end board designed to measure and condition cardiac electrical signals. Based on the AD8232 IC, it integrates signal amplification, filtering, and leads-off detection to generate a stable analog ECG output. The module operates at 3.3V DC and features a 3.5 mm jack for standard biomedical electrode pads. Built for reliable signal acquisition with reduced motion artifacts, it is suitable for biomedical experiments, wearable prototypes, and educational ECG monitoring systems.

• AD8232 analog front-end IC

• Single-lead ECG signal acquisition

• Integrated signal amplification and filtering

• Analog voltage output for MCU interfacing

• Leads-off detection circuitry

• 3.5 mm biomedical electrode connector

• 3.3V DC operating voltage

• Shutdown control for low-power mode

• Onboard LED status indicator

• Motion artifact and noise reduction

• Compact PCB for wearable integration

• Compatible with Arduino and 3.3V MCUs

• Operating Voltage: 3.3V DC

• Operating Current: 170 µA (typical)

• ECG Configuration: Single Lead

• Output Type: Analog Voltage Output

• Output Voltage Range: 0 – 3.3V

• High-Pass Filter Cutoff: 0.5 Hz (typical)

• Low-Pass Filter Cutoff: 40 Hz (typical)

• CMRR: 80 dB (typical)

• Leads-Off Detection: Supported

• Connector Type: 3.5 mm Audio Jack

• Operating Temperature: -40 °C to 85 °C

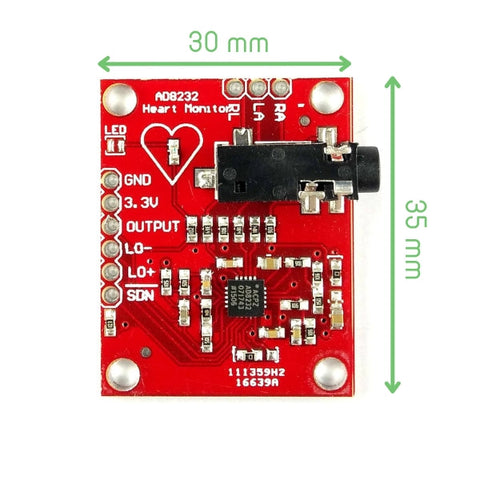

• PCB Dimensions: 36 mm × 30 mm
