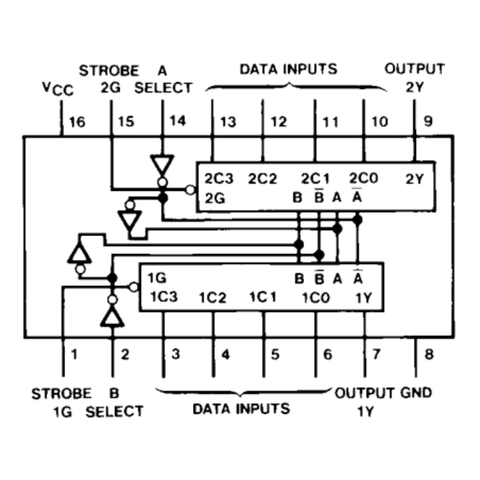

74153 Dual 4-to-1 Data Selector/Multiplexer IC

The 74153 is a TTL logic IC that integrates two independent 4-to-1 data selectors in a single package.
It routes one of four data inputs to a single output for each channel based on shared select lines.
The device operates from a single 5 V supply and is compatible with standard TTL logic levels.
Each multiplexer includes an independent enable input for output control.
Typical applications include data routing, signal selection, bus multiplexing, and digital control systems.

• Dual 4-to-1 Multiplexer Architecture providing two independent data paths

• Shared Select Inputs simplifying control logic

• Independent Enable Inputs allowing channel-level control

• TTL Logic Family compatible with standard TTL levels

• Single 5 V Supply Operation for digital systems

• Through-Hole DIP Package for breadboard and PCB use

• Model | 74153

• Device Type | Dual 4-to-1 Data Selector/Multiplexer IC

• Logic Family | TTL

• Number of Channels | 2

• Inputs per Channel | 4

• Select Lines | 2 (Shared)

• Enable Inputs | 2 (Independent)

• Supply Voltage | 5 V

• Propagation Delay (Typical) | 18 ns

• Power Consumption (Typical) | 25 mW

• Operating Temperature Range | 0 °C to 70 °C

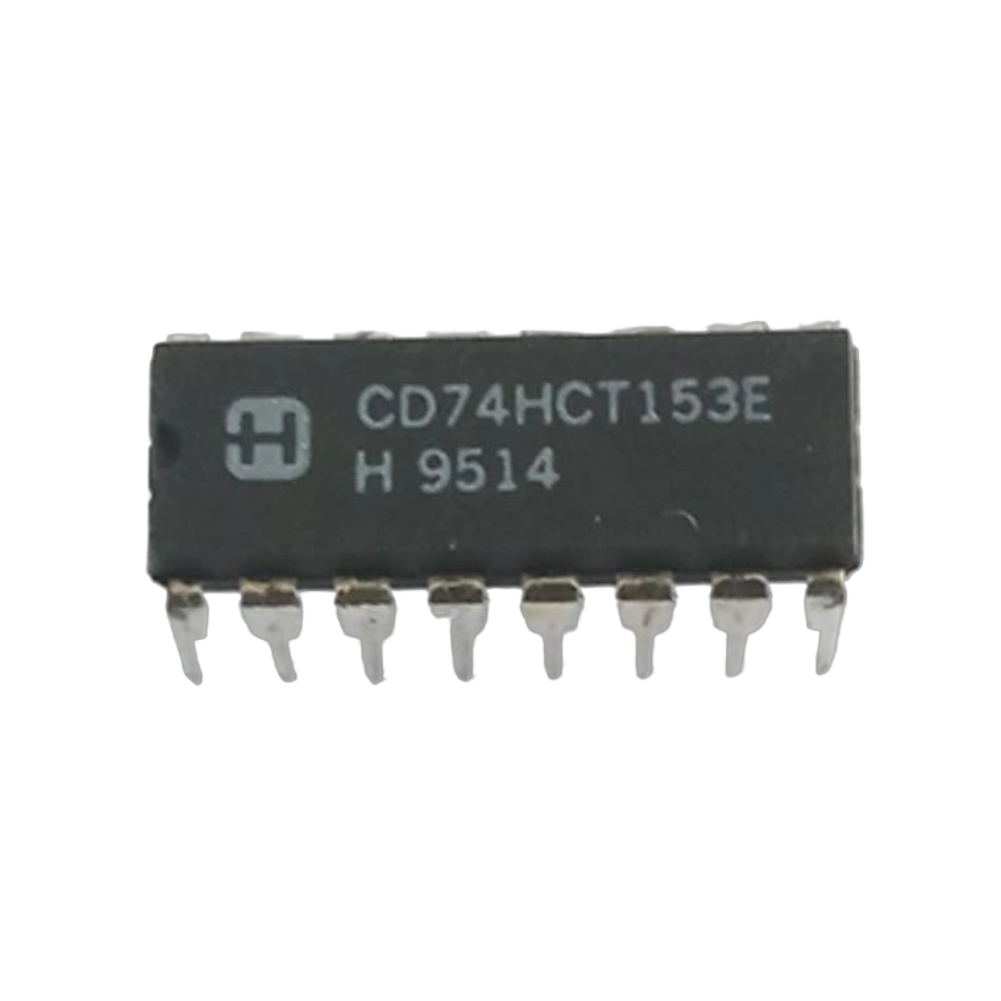

• Package Type | 16-Pin DIP
