DS5180 Metal Gear Servo Motor – 80kg.cm Torque, 270° Rotation

This is a high-quality, high torque servo motor for all your high power robotics and RC needs. This servo is specially made for use in Hexapods, RC airplanes, fixed-wing airplanes, helicopters, robotics, mini robot, mini manipulator and grippers, etc. Easily available libraries for Arduino & Raspberry Pi make it easy to use this servo motor in your project. This motor generates a massive 80kg.cm torque.

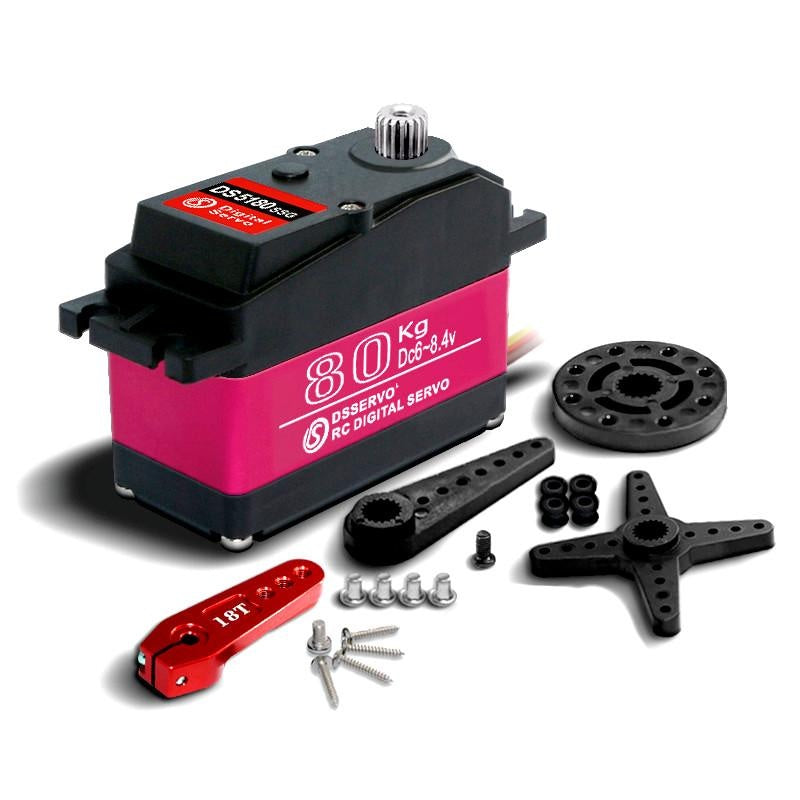

It comes with a 3-pin power, control cable, control horns, and mounting hardware.

It comes in a standard 3 pin connector. It is simple and easy to control. It can be directly used with an Arduino and uses only digital input/output pin.

• Model: Probots DS5180 Servo Motor 180 degree
• High-performance Digital Metal Servo
• Digital Servo with quick response to digital input and high accuracy. Holds the requested angle at higher precision compared to normal servos
• Metal Gear Construction ensures the high torque rating of this motor doesn't damage the internal gears during stall events
• Output shaft can roate between 0 and 180 degree(approximately)
• High-precision metal gears with hard anodizing
• CNC aluminum middle Shell
• Dual ball bearings
• Working Voltage
  • 6V 4mA 0.24sec/60 ° 85kg cm / 4.1a
  • 7.4V 5MA 0.21SEC/60° 98kg-cm/5.4A
  • 8.4V 6MA 0.19SEC/60° 105kg-cm/6.5A
